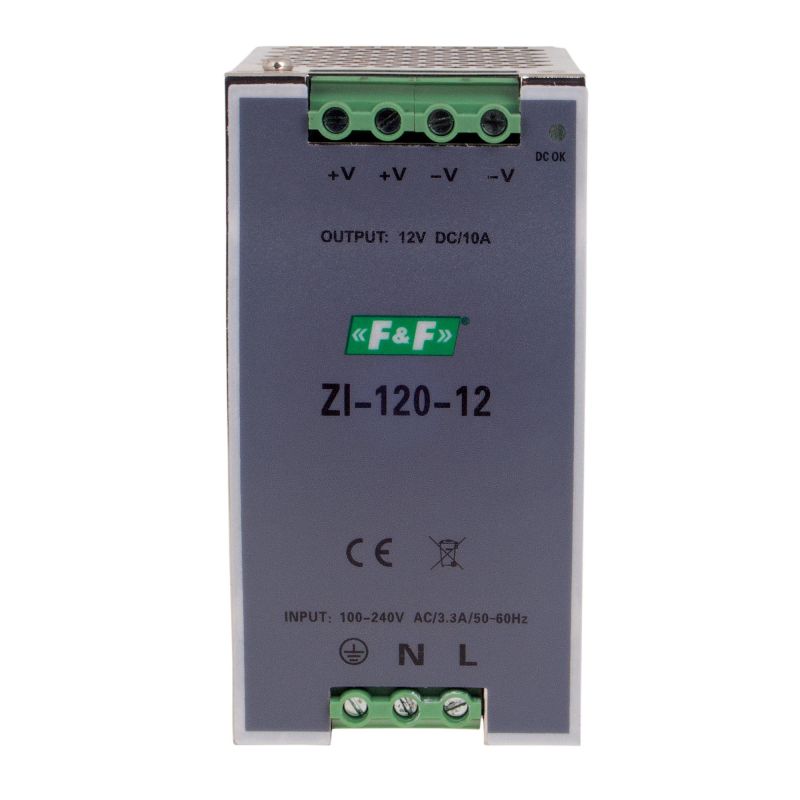

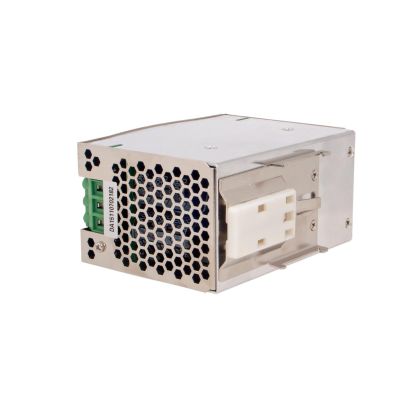

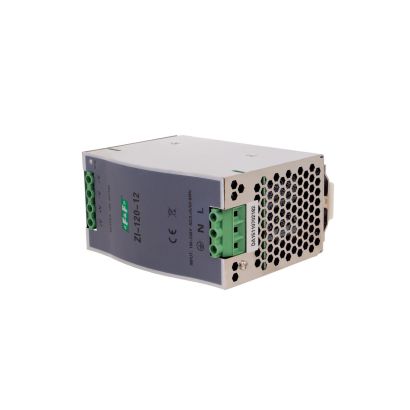

Pulse power supply ZI-120-12
Output voltage 12 V. Power 120 W.
For power supply systems for electrical and electronic devices in industrial automation systems and IT networks.
For power supply systems for electrical and electronic devices in industrial automation systems and IT networks.
Green DC OK LED indicates correctness of the power supply at the output. The power supply has internal short-circuit, overload, overvoltage and temperature protection.
Implementation
| Type | Current | Power |
| ZI-75-12 | 6,25A | 75W |
| ZI-120-12 | 10A | 120W |
| ZI-240-12 | 20A | 240W |
- Type
- impulse power supply
- Power supply voltage
- 100÷240 V AC
- Frequency
- 50÷60 Hz
- Maximum load current
- 10 A
- Output voltage OUT
- 12 V DC
- Output power
- 120 W
- Minimal load
- 0%
- Switching frequency
- 100 kHz
- Overload
- 150%/3 min
- WE-WY breakthrough voltage
- 3 kV
- Mass
- 670 g
- Terminal
- pluggable terminal blocks 4,0 mm²
- Tightening torque
- 0,5 Nm
- Working temperature
- -10÷70°C
- Dimensions
- 130 mm x 67 mm x 115 mm
- Assembly
- on rail 35 mm
- Ingress Protection Marking
- IP20
