Staircase timer AS-B 2424 V

View larger

Display all pictures

Product
Data sheet
Scheme
Tips
Download

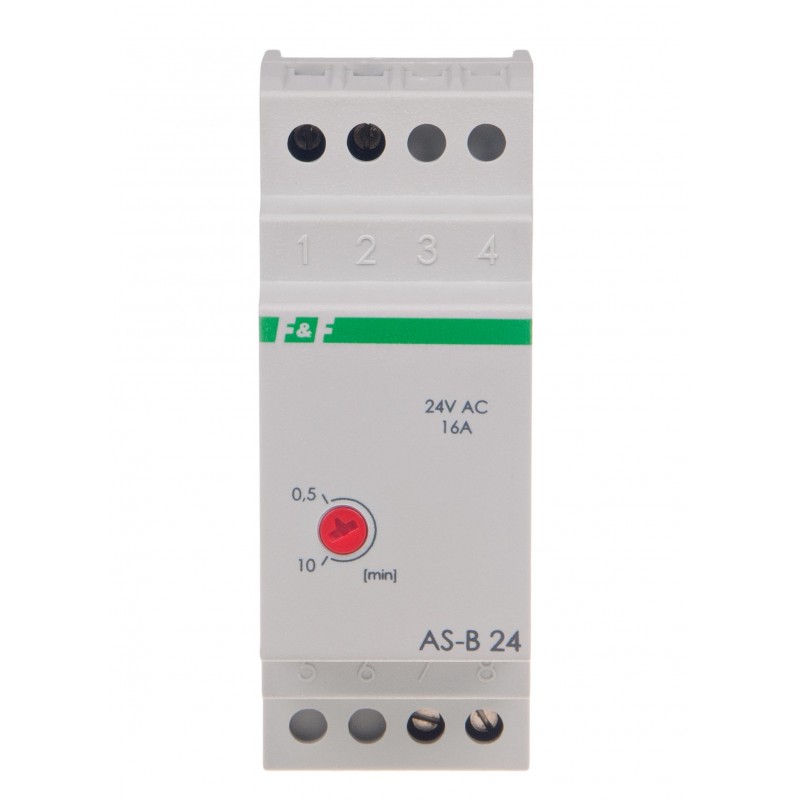

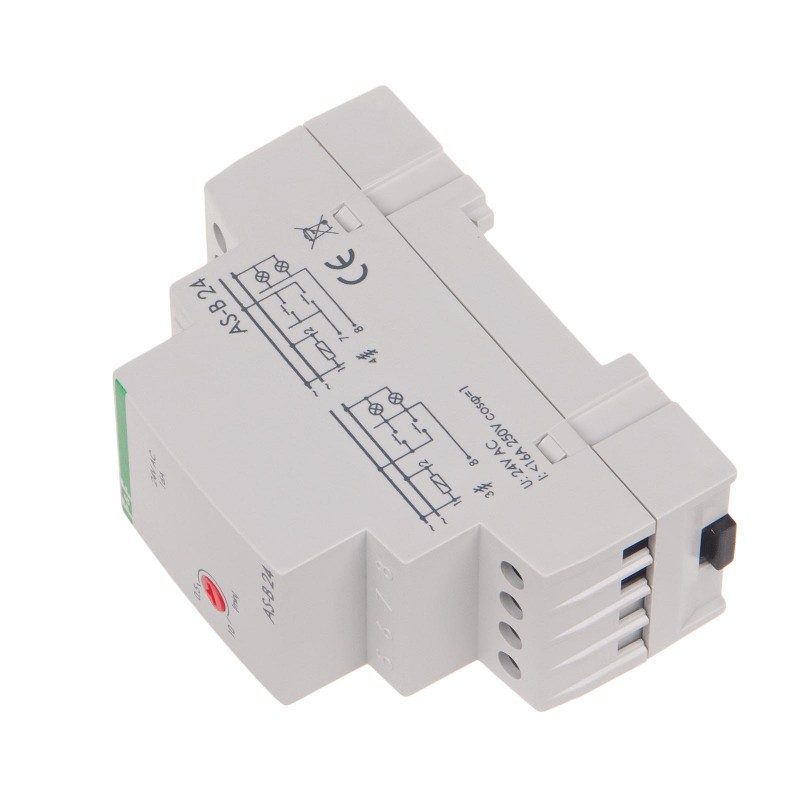

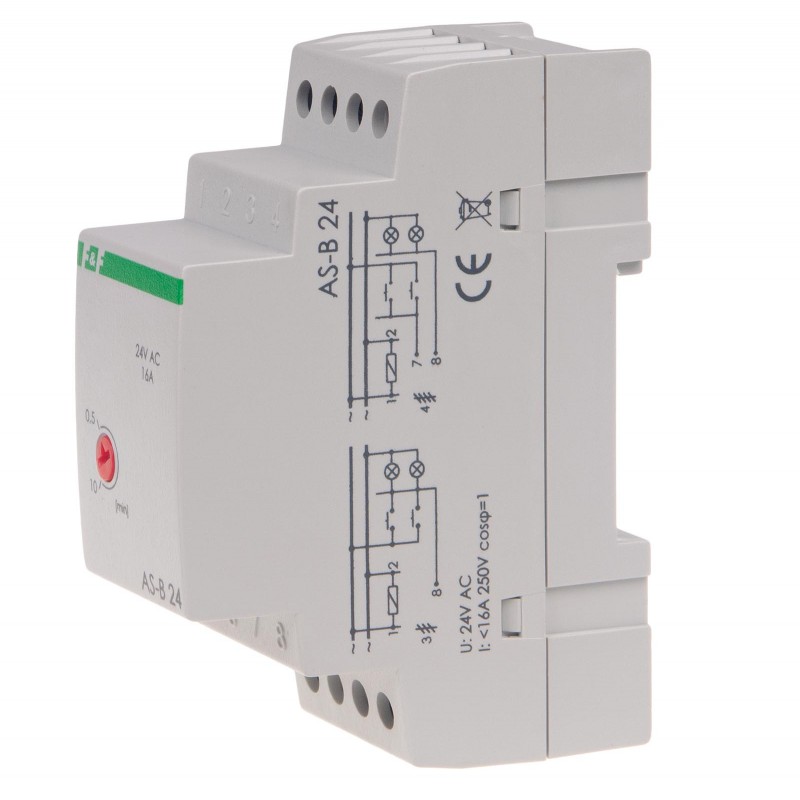

Staircase timer AS-B 2424 V

Reference: AS-B24, EAN13: 5908312592112

Product description

Staircase timer serves to keep switched-ON lighting of staircase, corridor, or any other object for the set time and to switch-OFF this lighting automatically, upon elapse of this set time.
Supply 24 V AC. On rail 35 mm. 16 A.

Functioning
Turned ON staircase timer supports the lighting during set time by potentiometer (from 0,5min. to 10min.). After passage of set time timer will switch OFF the lighting automatically. After switching OFF the lighting there is possibility to switch it ON again.

Attention!
AS-B 220 is adapted to co-operate with pushbuttons equipped with neon lamp

Attention!
AS-B 24 is not compatible with pushbuttons equipped with neon lamp.

Attention!
There is possibility of a special implementation of automatic voltage zmierzchowych other than those indicated in the table of technical data, such as 12V, 24V, 48V and 110V AC/DC and others.

Power supply voltage	24 V AC
Maximum AC-1 load current	16 A
The executive element	relay
Contact configuration	1 × NO
Separation of the contact	NO
Delay of operation	less than 1 s
Switch off delay - adjustable	0,5 ÷ 10 min
the anti-blockade	NO
Switching off indication	NO
Cooperation with illuminated buttons	NO
Terminal	pluggable terminal blocks 4,0 mm²
Tightening torque	0,5 Nm
Power consumption	1,2 W
Working temperature	-25 ÷ 50 °C
Dimensions	2 modules (35 mm)
Assembly	on rail 35 mm
Ingress Protection Marking	IP20

AS-B 24 manual (649.25k)

AS-B 24 - outline dxf (385.35k)

AS ASO declaration CE 2024 (179.33k)

Przyciski podświetlane
Z uwagi na niskie napięcie zasilania nie należy stosować przycisków podświetlanych.

Maksymalny prąd obciążenia
Prąd styku podany w danych technicznych jest wartością maksymalną i może podlegać ograniczeniom – więcej informacji. Jeśli z przedstawionych informacji wynika, że przekaźnik w urządzeniu jest niewystarczający zaleca się stosować zewnętrzny element przełączający (np. stycznik) przystosowany do przełączania dużych prądów udarowych.

Przeciwblokada
Automat nie posiada funkcji przeciwblokady, a więc zablokowanie przycisku (np. zapałką) spowoduje załączenie oświetlenia na stałe (do momentu usunięcia zapałki).
