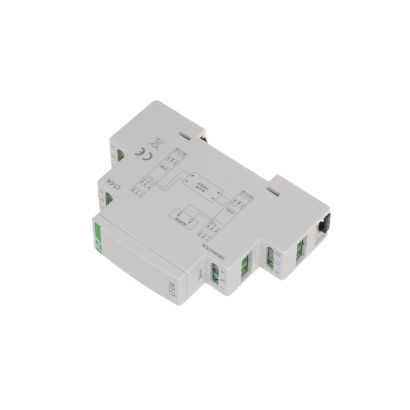

Network termination module LT-04

MAX-LT-04, 5908312594345
The LT module is used for termination, polarization and amplification of the signal line of the RS-485 network.

Functioning
Termination means ending the signal line (UTP wire) with suitable resistances in order to maintain a consistent wave resistance across the line, which greatly improves the quality of transferred data and eliminates errors that emerge on the signal line. Line polarization is performed in case where at least one of the Slave-type devices in the RS-485 network does not have a GND signal point. Polarization is performed only for the MASTER-type device. Signal amplification is done via active power supplying of the line with low voltage through one of the modules.





MAX-LT-04
Power supply voltage
15÷30V DC
System current
10 mA
Terminal
pluggable terminal blocks 2,5 mm²
Tightening torque
0,4 Nm
Working temperature
-25 ÷ 50 °C
Dimensions
1 module (18 mm)
Assembly
on rail 35 mm
Ingress Protection Marking
IP20

Network termination system RS-485






Polarization system RS-485 network






Network polarization system (with termination) for slaves without GND
