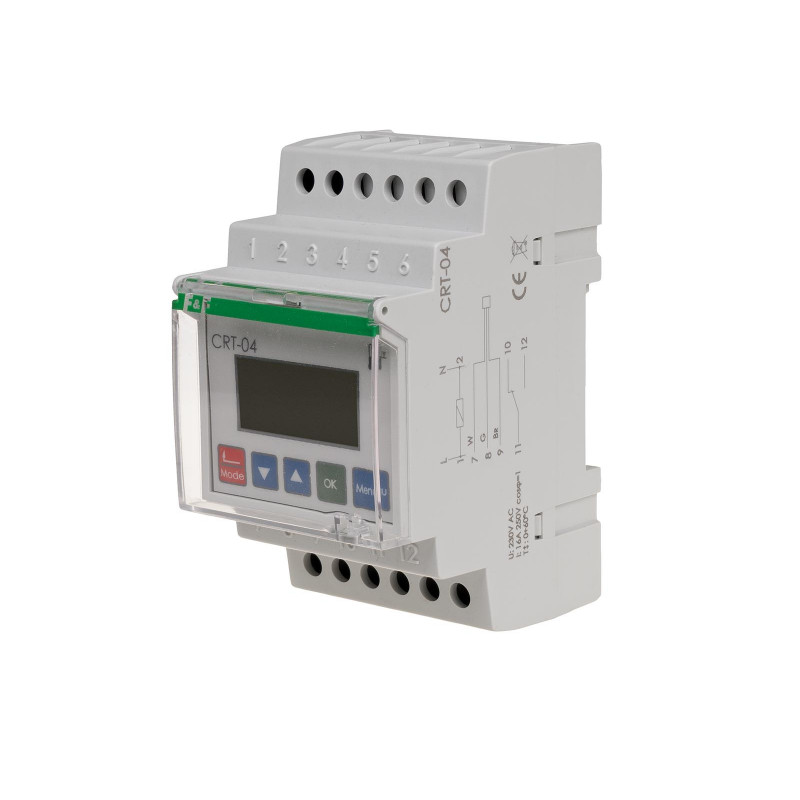

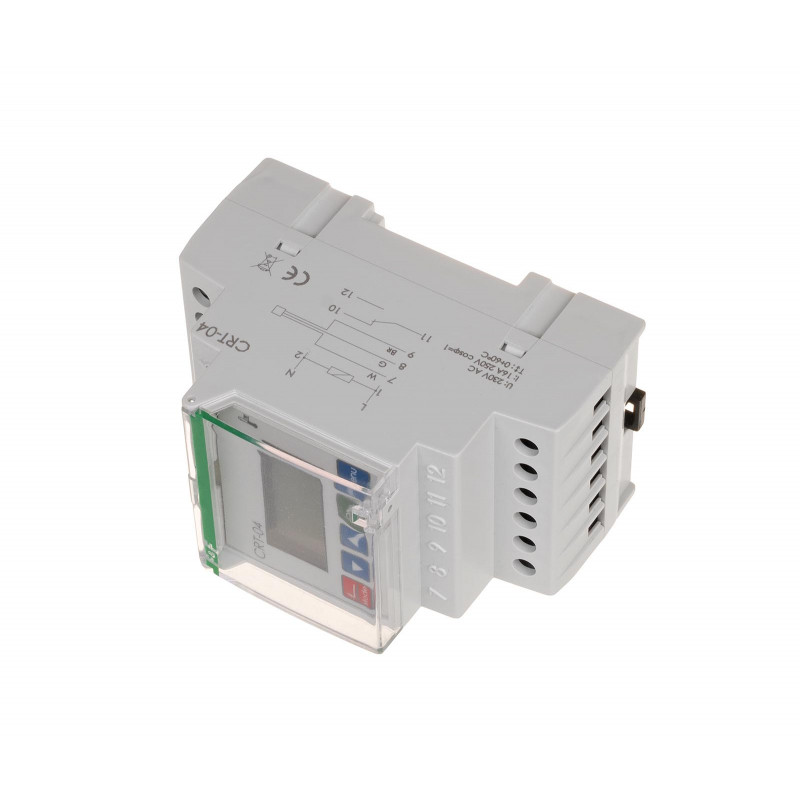

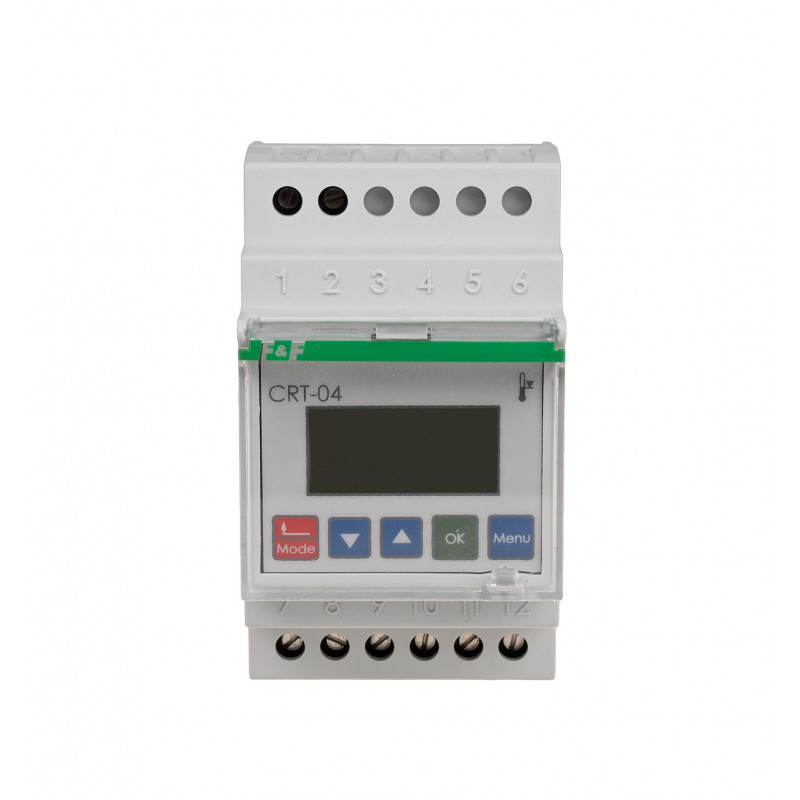

Temperature regulator CRT-04
Programmable. Temperature range: 0÷60ºC.
The CRT controllers are multi-function, programmable electronic devices which enable control of heating or cooling devices in order to maintain a stable room temperature, as well as to control ambient and substance temperatures in industrial conditions, with the option of supervising technological processes.
Functioning
The operation time and required temperature are achieved according to the individual program set by the user. The CRT controllers are equipped with a calendar and a real time clock which enable switching the controlled device on and off at preset hours within the following cycles: 24-hour, weekly, business-day (Mon. Fri.) or weekend (Sat., Sun.).
Functions
*control panel for programming and monitoring;
*operation modes: HEATING and COOLING to maintain a preset temperature according to programmed hours and days;
*CONTINUOUS operating mode to maintain a single preset temperature value while ignoring other program entries;
*MEASUREMENT operating mode display of an actual temperature value without controlling a connected machine;
*50 program entries;
INTERVAL this feature enables the user to program up to 8 required temperature values (3 in the MY1, MY2 and MY3 modes, and an additional 5 in modes called MORNING, WORK, DINNER, DAY, and NIGHT for everyday time windows related to the users' lifestyle;
*DELAY programmable time of response delay while exceeding limit temperature values;
*CORRECTION related to the temperature read-out error against the model thermometer;
*SENSORS visual signalisation of the temperature sensor failure;
*DST automatic DST time implementation with programmable shift to manual mode;
*LIGHT selection of display illumination mode.
*LANGUAGE program menu in three languages: Polish, English or Russian
Attention!

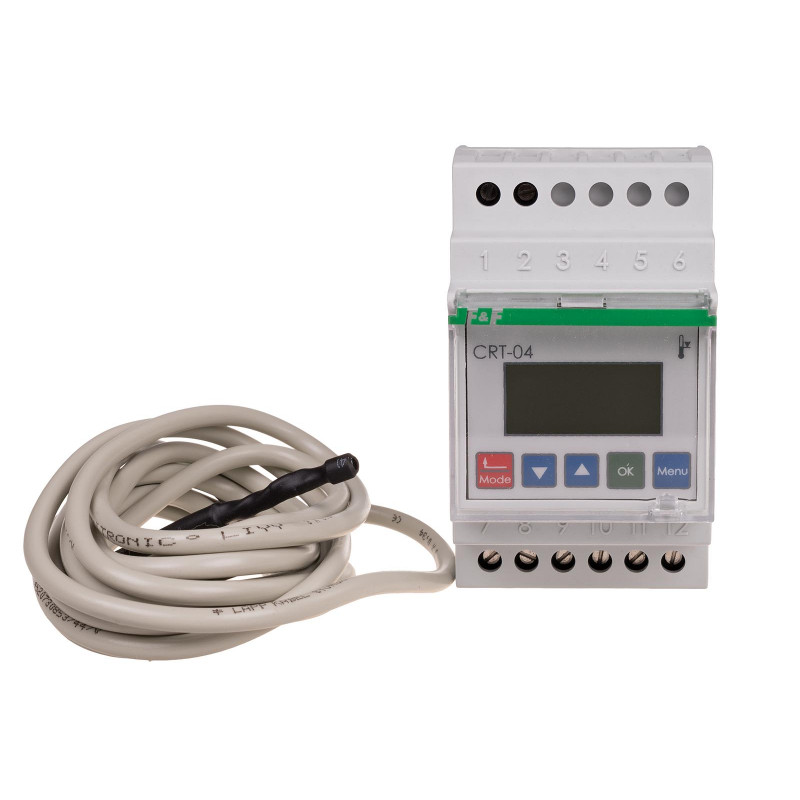

The probe is in set with temperature regulator.
- Power supply voltage
- 230 V AC
- The executive element
- relay
- Maximum load current
- 16 A
- Contact configuration
- 1 × NO/NC
- Separation of the contact
- YES
- Temperature regulation range
- 0÷99°C
- Hysteresis - adjustable
- 0÷10°C
- Accuracy of setting
- 0,1°C
- Temperature probe
- RT4
- Battery life
- 3 years
- Correction
- ±5°C
- Switching delay time - adjustable
- 1÷15 min
- Terminal
- pluggable terminal blocks 4,0 mm²
- Tightening torque
- 0,5 Nm
- Power consumption
- 1,5 W
- Working temperature
- -20÷40°C
- Dimensions
- 3 modules (52,5 mm)
- Assembly
- on rail 35 mm
- Ingress Protection Marking
- IP20
Program menu
