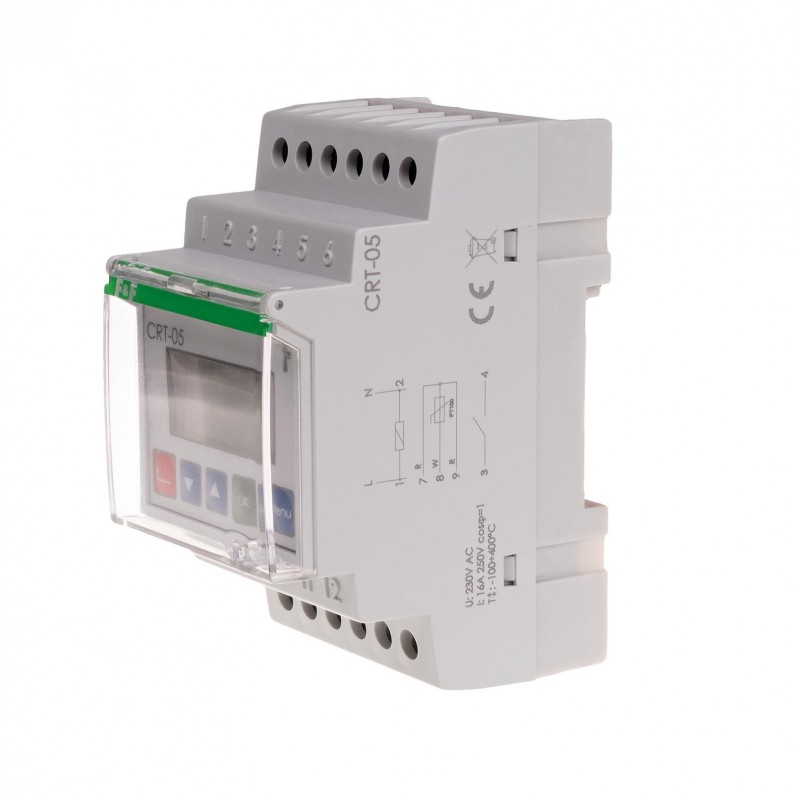

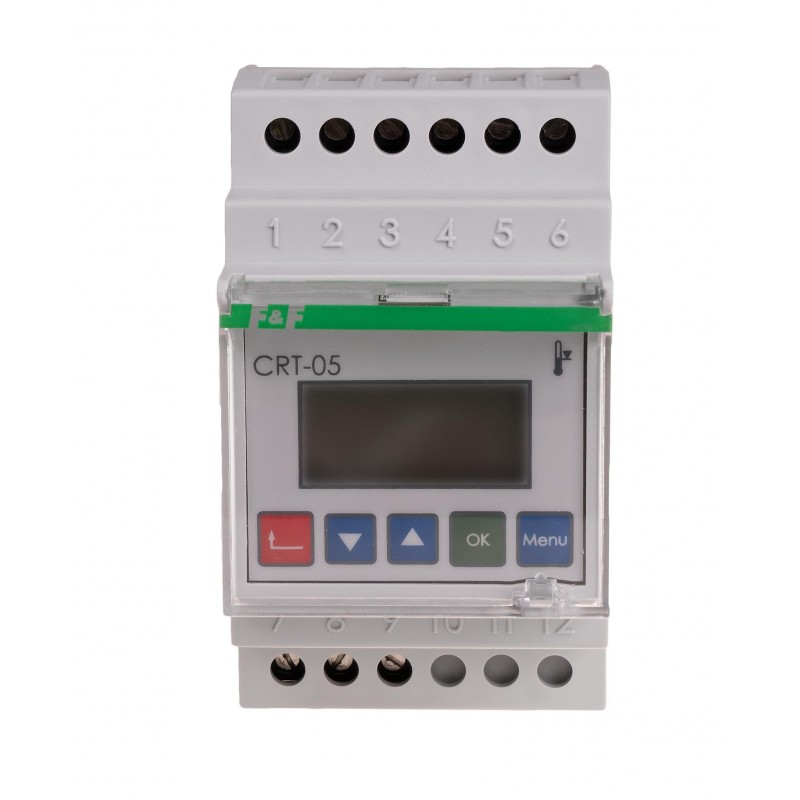

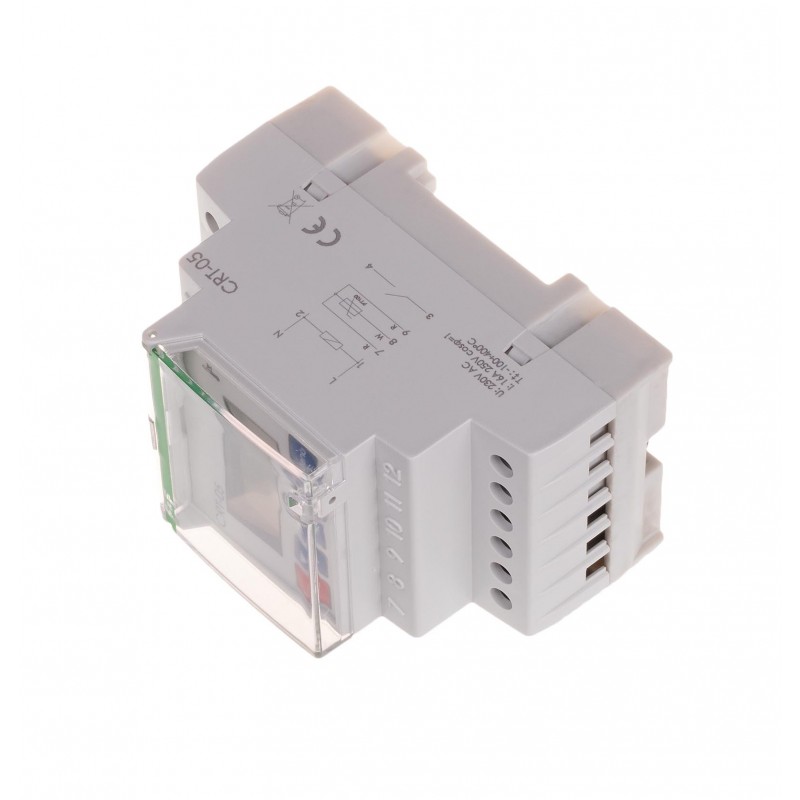

Temperature regulator CRT-05
2-Functions. Temperature range: -100÷400ºC.
CRT-05 is programmable electronic multi-regulator, enabling heating control devices in order to maintain a constant room temperature, ambient temperature control and temperature of the substance in terms of the possibility of industrial process control technology.
Functions
* control panel for programming and monitoring;
* 2 operations modes: HEATING and COOLING;
* 2 regulated HYSTERESIS values lower and upper limits;
* AUTOMATIC mode operation with one selected function;
* MANUAL mode permanent closing or opening of the contact without a temperature measurement;
* CORRECTION related to the temperature read-out error against the model thermometer;
* WARNING - visual signalisation of the temperature sensor failure, range exceed and speed riasing or falling temperature exceed;
* limiting access to program menu using PIN code;
* LIGHT selection of display illumination mode;
* LANGUAGE program menu in three languages: Polish, English or Russian.
Attention!
Probe sold separately.
- Power supply voltage
- 230 V AC
- The executive element
- relay
- Maximum load current
- 16 A
- Contact configuration
- 1 × NO
- Separation of the contact
- YES
- Temperature regulation range
- -100÷400°C
- Hysteresis - adjustable
- 0÷100°C
- Accuracy of setting
- 0,5 °C
- Dokładność nastawy histerezy
- 0,1 °C
- Temperature probe
- RT56 (PT-100)
- Correction
- ±20°C
- Gradient
- 4°C /1s
- Terminal
- pluggable terminal blocks 2,5 mm²
- Tightening torque
- 0,4 Nm
- Power consumption
- 1,5 W
- Working temperature
- -20÷40°C
- Dimensions
- 3 modules (52,5 mm)
- Assembly
- on rail 35 mm
- Ingress Protection Marking
- IP20
