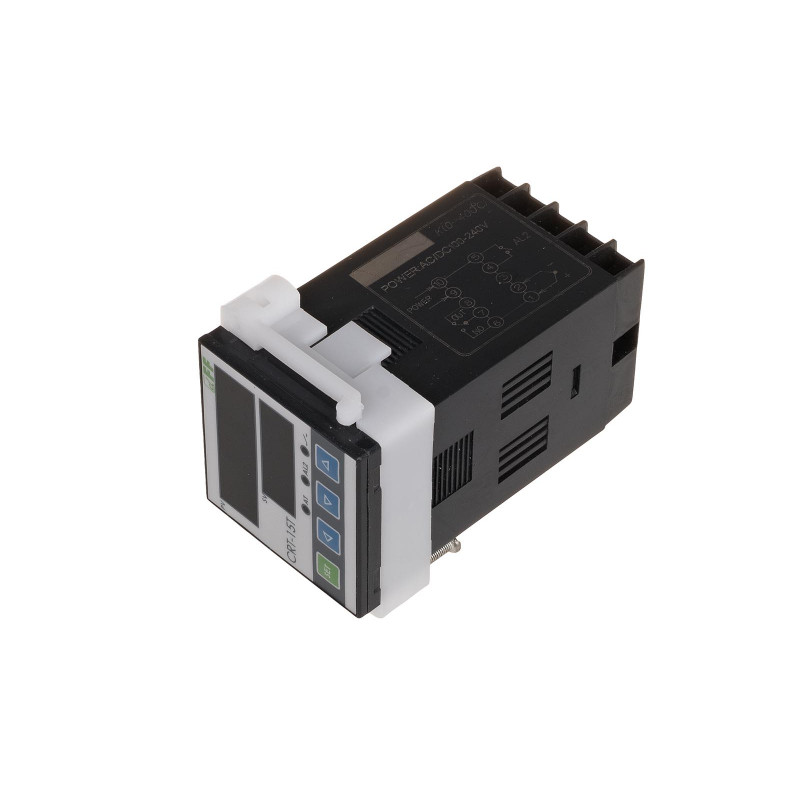

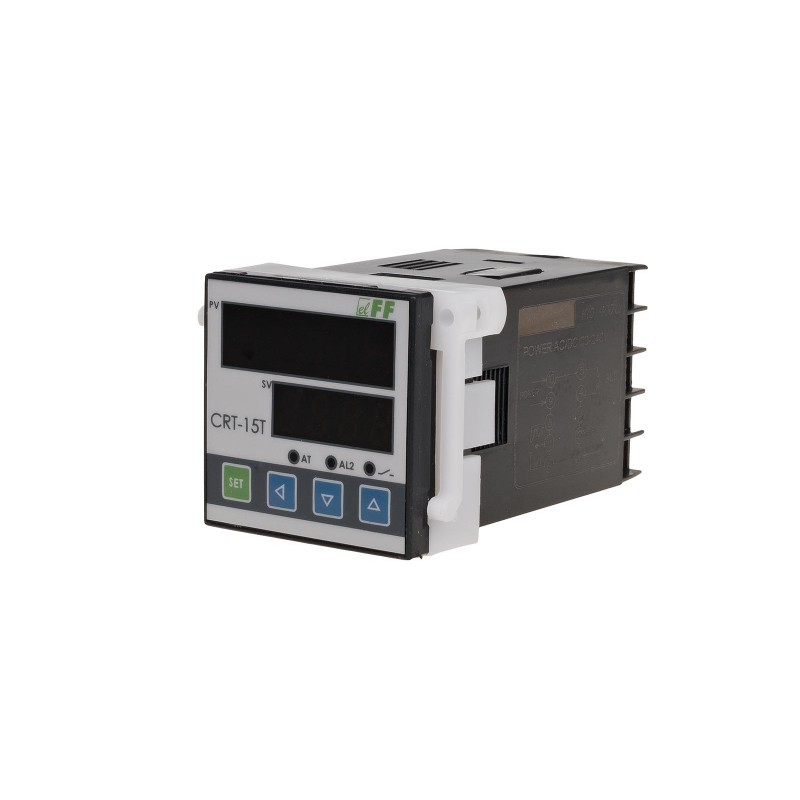

Temperature regulator CRT-15T
PID type. Temperature range: 0÷400ºC.
CRT-15T is a digital temperature controller adapted to adjust the temperature by turning on and off the receiver connected to the transmitter output controller.
CRT-15T is a digital temperature controller adapted to adjust the temperature by turning on and off the receiver connected to the transmitter output controller.
Functions
*control panel for programming and monitoring of device operation;
*PID controller (a proportional-integral-derivative controller);
*automatic tuning of the PID regulator;
*ALARM programmable temperature limit to trigger off the alarm feature;
*preset temperature indications;
*current temperature indications;
*1P output contact;
*additional ALARM output: 1Z contact
*CORRECTION related to the temperature read-out error against the model thermometer;
*LOCK settings block.
Attention!

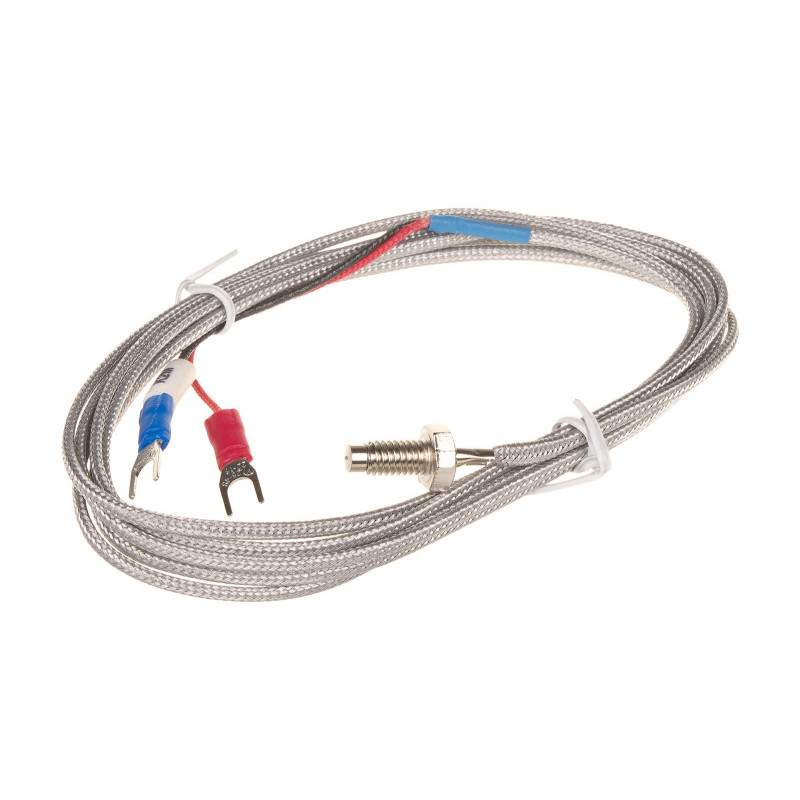

Probe sold separately.
- Power supply voltage
- 100÷240 V AC
- The executive element
- relay
- Maximum load current
- 3 A
- Contact configuration
- 1 × NO/NC
- Separation of the contact
- YES
- Accuracy of setting
- 0,5°C±1cyfra
- Correction
- ±15°C
- Load current of the alarm output
- 1:00 AM
- Alarm output contact
- separated 1 x NO
- PID setting - proportional part P
- 0÷100
- PID setting - integral part I
- 0÷255
- PID setting - differentiating part D
- 0÷255
- Terminal
- pluggable terminal blocks 2,5 mm²
- Tightening torque
- 0,5 Nm
- Power consumption
- 1 W
- Working temperature
- -10÷40°C
- Dimensions
- 48 mm × 48 mm × 86 mm
- Mounting hole
- 45 mm x 45 mm
- Ingress Protection Marking
- IP20
