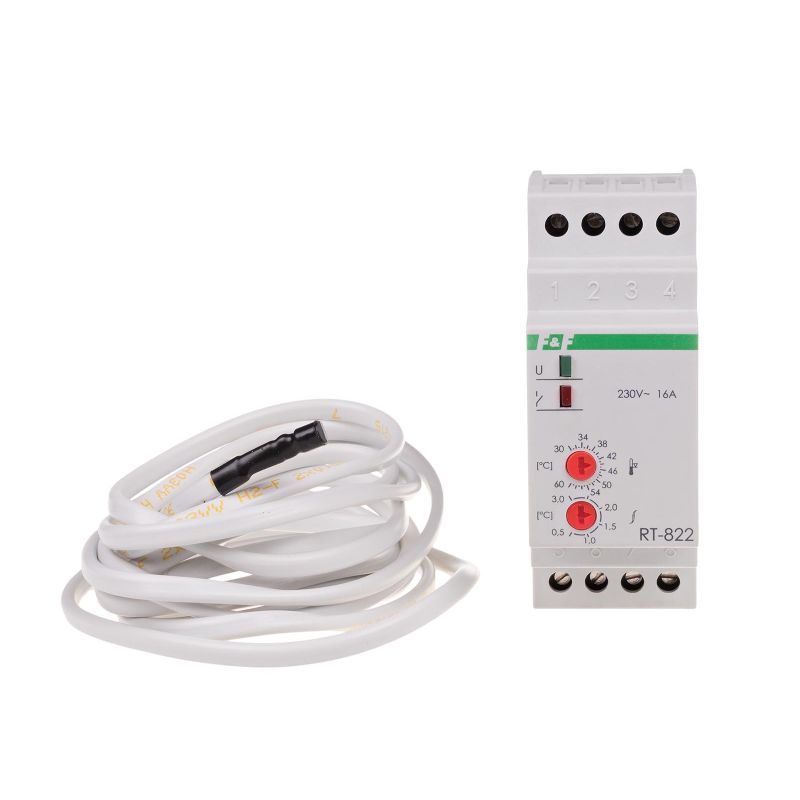

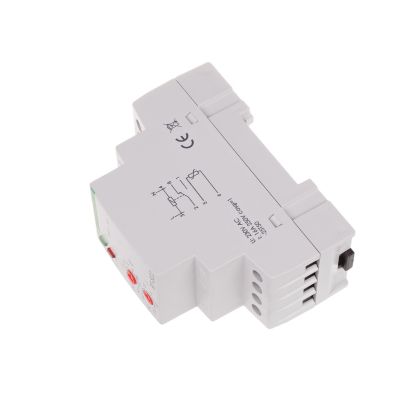

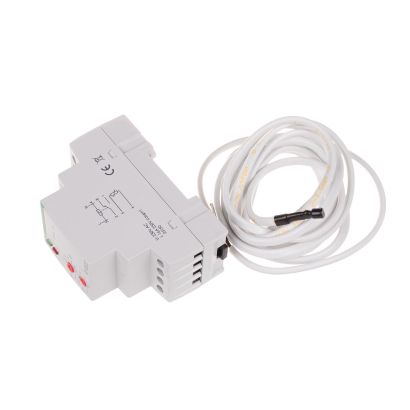

Temperature regulator RT-822
For general use. Temperature range 30÷60 °C.
Temperature regulators may be used for equipment control in anti-freeze systems which prevent the freezing of gutters, the accumulation of ice on stairs, vehicles, etc.
Temperature regulators may be used for equipment control in anti-freeze systems which prevent the freezing of gutters, the accumulation of ice on stairs, vehicles, etc.
Functioning
The power supply to the generator is indicated by the green LED. Until the required ambient temperature is achieved, the contact of the regulator remains in position 2-1 and the heating device is active. Once the set value is achieved, the contact shifts into position 2-8 and the heating or ventilation device is turned off. Any drop in temperature by the hysteresis value will activate the heating device again (contacts 2-1 closed) until the set temperature value is achieved.
| RT probe |
|
| design for | RT-820, RT-821, RT-822 |
| temperature sensor | KTY 10-6 |
| probe dimensions | Ø5; h=20mm |
| sensor silolation | thermoshrinkable shirt |
| cable | OMY 2×0,34mm²; l=2,5m |
| RT823 probe |
|
| design for | RT-823 |
| temperature sensor | KTY 10-6 |
| probe dimensions | Ø8; h=40mm |
| sensor silolation | brass muff |
| cable | SIHF 2×0,5mm²; l=2,5m heatresist |
- Power supply voltage
- 230 V AC
- The executive element
- relay
- Maximum load current
- 16 A
- Contact configuration
- 1 × NO/NC
- Separation of the contact
- YES
- Temperature regulation range
- 30÷60°C
- Hysteresis - adjustable
- 0,5÷3°C
- Accuracy of setting
- 1°C
- Accuracy of measurement
- ±1°C
- Temperature probe
- RT/RT2
- Terminal
- pluggable terminal blocks 4,0 mm²
- Tightening torque
- 0,5 Nm
- Power consumption
- 1,1 W
- Working temperature
- -25 ÷ 50 °C
- Dimensions
- 2 modules (35 mm)
- Assembly
- on rail 35 mm
- Ingress Protection Marking
- IP20
