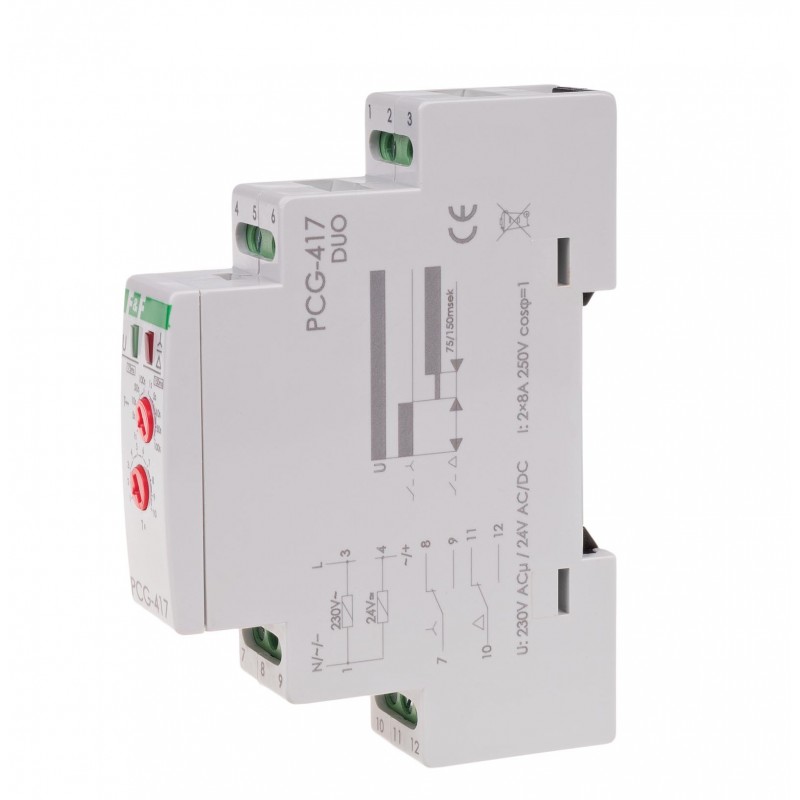

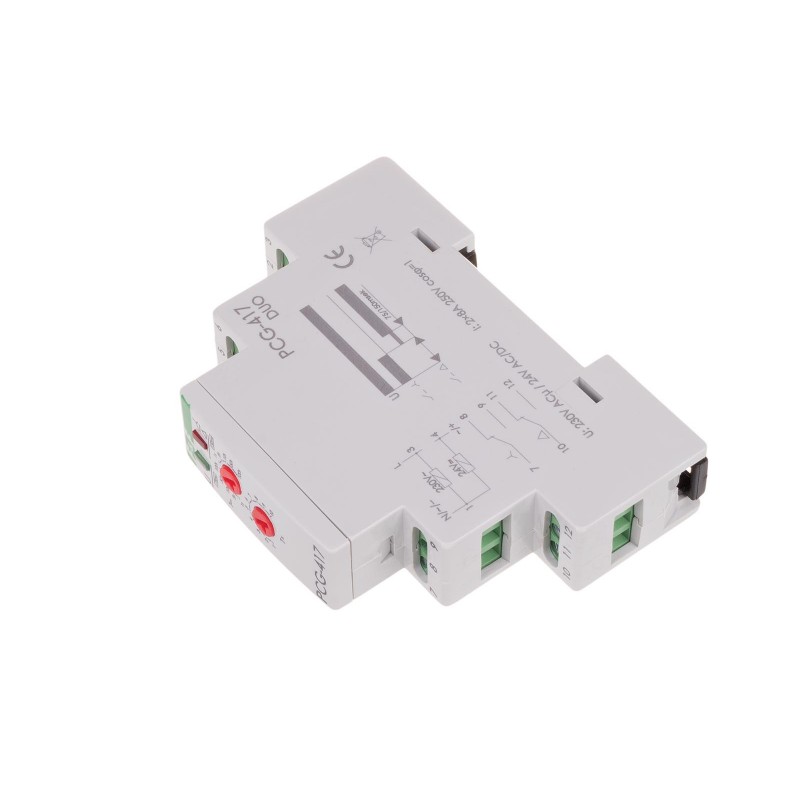

Time controller PCG-417 DUO

PCG-417DUO, 5908312595502
To control the "star"-"delta" contactor connection system.

Functioning
The PCG-417 relay is equipped with a special system of two electromagnetic relays which removes the risk of activating two connectors simultaneously, with each relay controlling a given connector. Once the system is switched from "star" to "delta", one relay disconnects the "star" connector (a forced interval takes place). The other then activates the “delta” connector.
After the power supply is turned on, the contact 7-9 is closed and remains in this position for the preset start-up time t1. After the lapse of t1, contact 7-9 opens and both contacts remain open for the time t2. After the lapse of t2, the contact 10-12 is closed and remains in this position until the power voltage is disconnected.





Setting the start time and the switch delay time

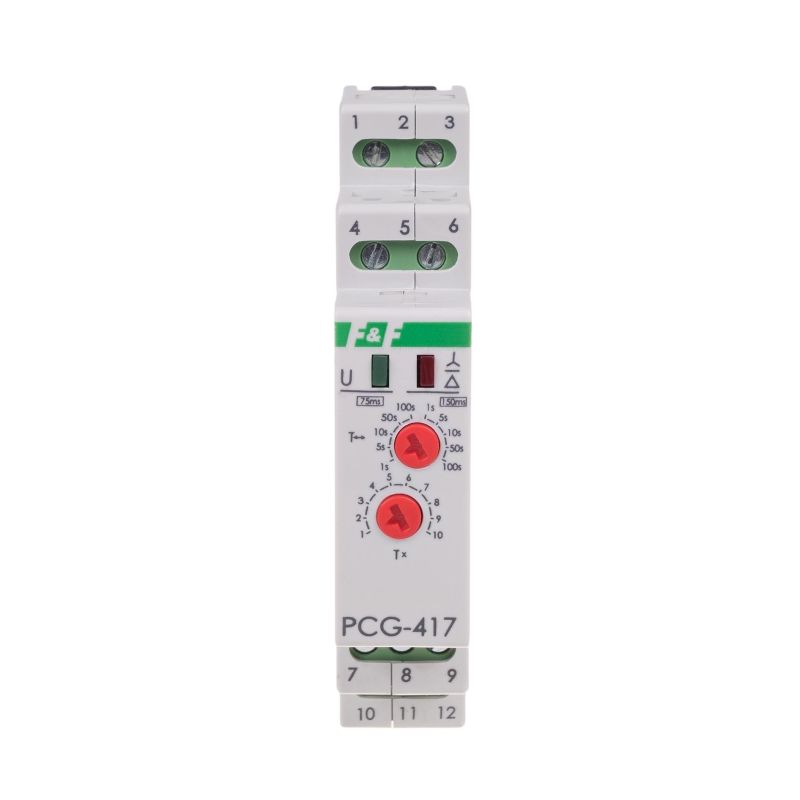

Wheel of choice for the temporal T↔ set the selected time range (for the option to switch the t2 = 75msec to the left of the scale and for the option to switch the delay t2 = 100msec on the right hand scale). Knob to set the value of T× on a scale of 1 to 10. A product of these values is equal to start time T1 (eg T1 = 1s × 7 = 7sec).





PCG-417DUO
Power supply voltage
230 V AC / 24 V AC/DC
The executive element
2 x relay
Maximum load current
2 × 8 A
Contact configuration
2 × NO
Separation of the contact
YES
Switching time
75 msec / 150 msec
Power indication
LED green
Response signaling
LED red
Start-up time STAR
1÷1000 sec
Terminal
pluggable terminal blocks 2,5 mm²
Tightening torque
0,4 Nm
Power consumption
0,8 W
Working temperature
-25 ÷ 50 °C
Dimensions
1 module (18 mm)
Assembly
on rail 35 mm
Ingress Protection Marking
IP20
Sterownik czasowy PCG-417 DUO
Sterownik czasowy PCG-417 DUO schemat podłączenia

Sterownik czasowy PCG-417 DUO układ podąłczenia
