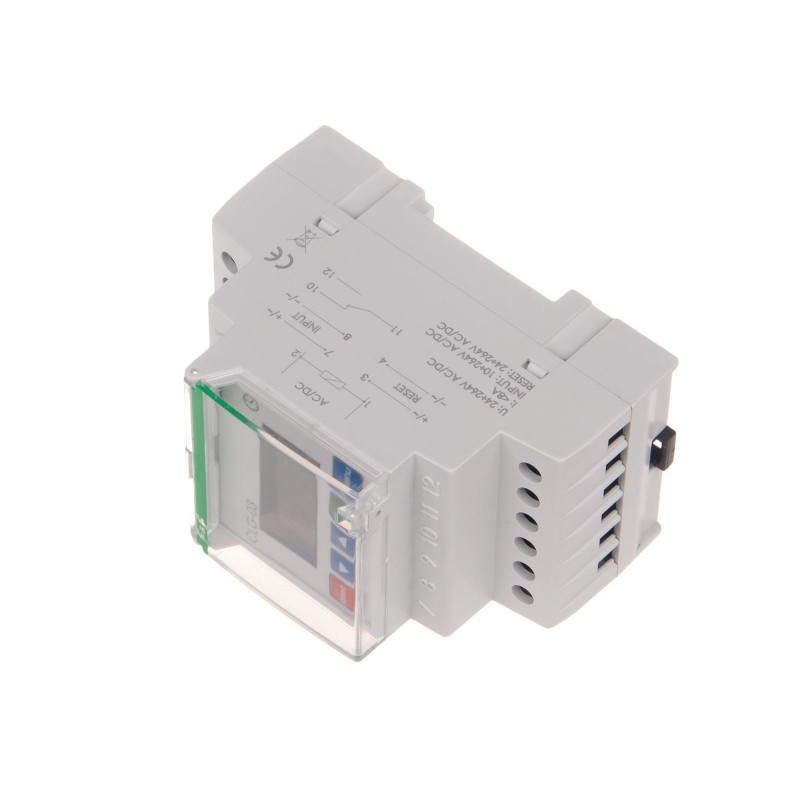

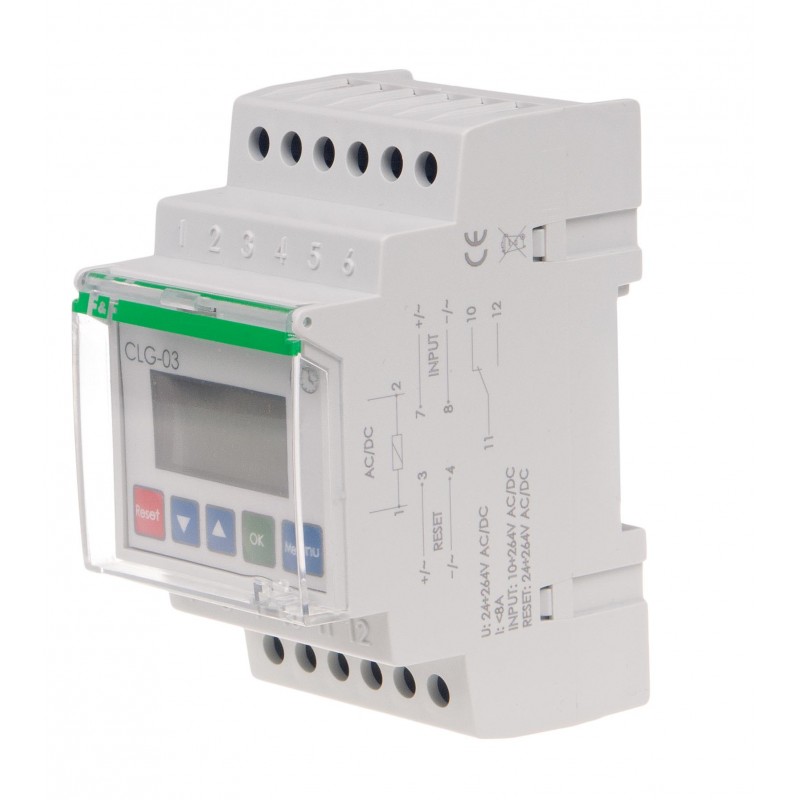

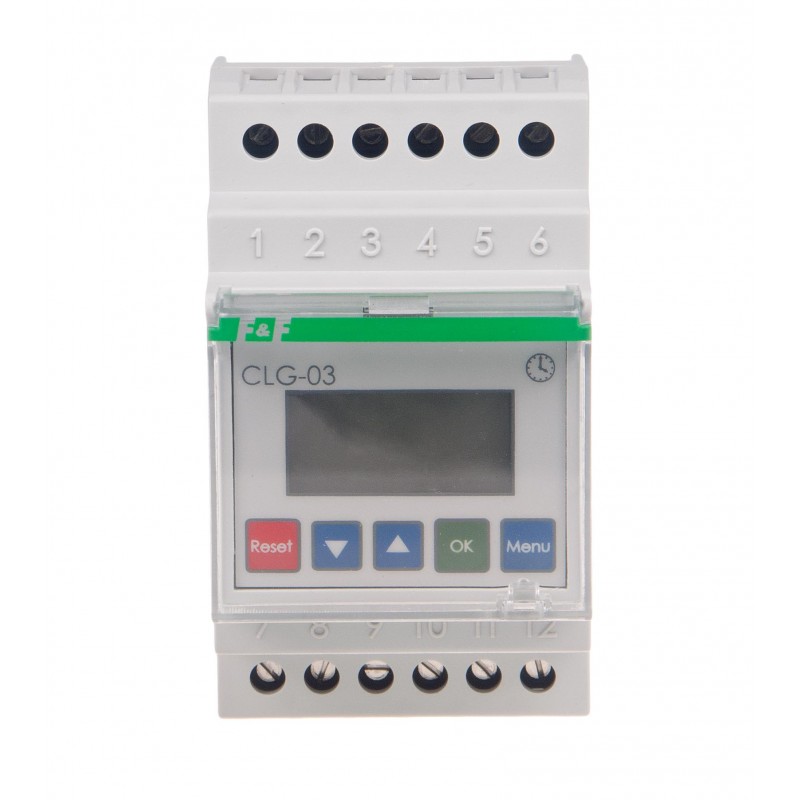

Working time meter CLG-03

CLG-03, 5908312591832
Programmable, multifunction electronic meter.
CLG-03 is a programmable, multi-function electronic meter, enabling the counting of working hours of the connected devices or systems in 1 to 999 999 range, corresponding to 114 years of operation. Working time is counted according to an individual program, set by the user. After reaching the limiting value, the meter will configure itself according to individual user's needs.

Functions
* control panel, enabling programming and the monitoring of device operation
* T input for DC signal and AC signal 50 Hz
* counting time upwards without threshold value
* 'downward' counting mode to the selected value with zero value signaling (e.g. 9999 →0)
* counting working time with high state (constant voltage) at the T input
* counting working time between two pulses given at the T input
* counting time upwards to the selected threshold value
* external RESET input
* relay output signaling the preset meter state (contact1C/O 8A )
* relay action selection: pulse with set time length; ON→ OFF or OFF→ ON state change
* local and total meter state memory after supply failure
* limiting access to program menu using PIN code
* setting display illumination mode
* program menu in three languages: Polish, English or Russian


CLG-03
Type
work time counter
Power supply voltage
24÷264 V AC/DC
Communication interface
NONE
The executive element
relay
Maximum load current
8 A
Contact configuration
1 × NO/NC
RESET input - voltage
10÷264 V AC/DC
Counting input - voltage
10÷264V AC/DC
The maximum value counted
999999
Terminal
pluggable terminal blocks 4,0 mm²
Tightening torque
0,5 Nm
Power consumption
1,5 W
Working temperature
-20÷50°C
Dimensions
3 modules (52,5 mm)
Assembly
on rail 35 mm
Ingress Protection Marking
IP20
