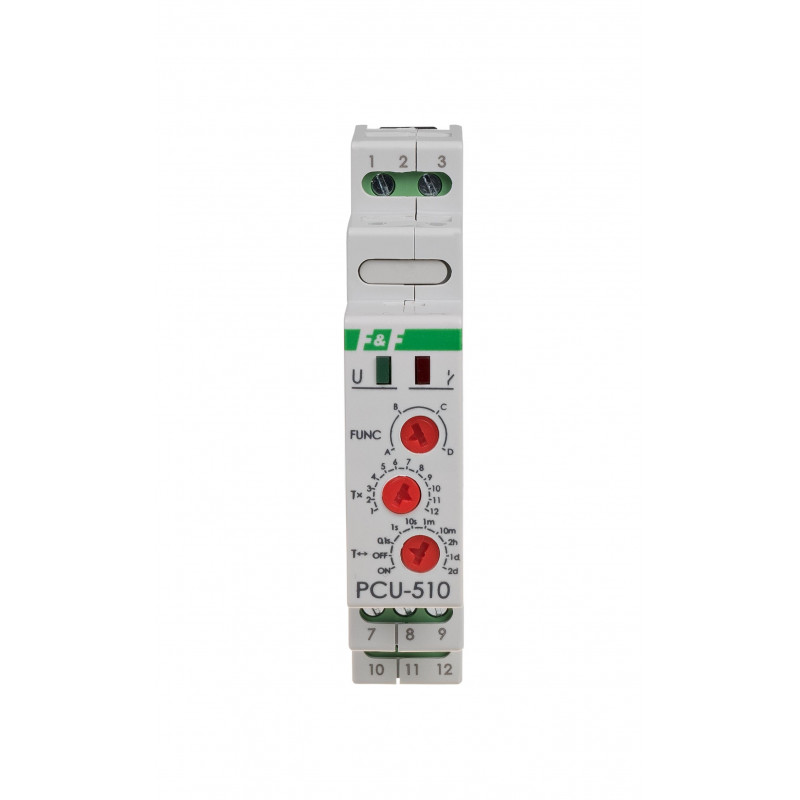

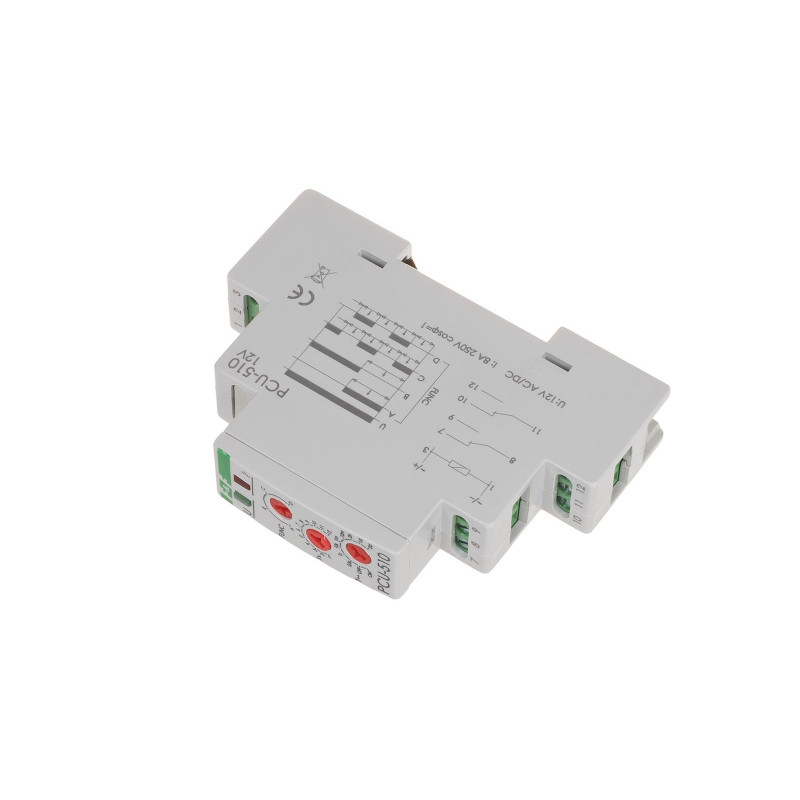

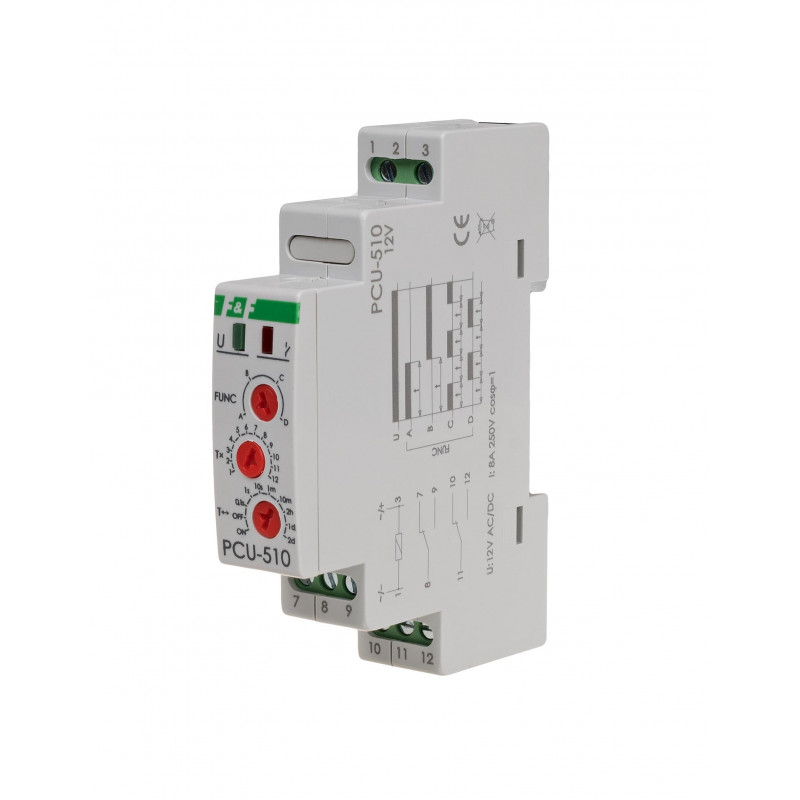

Timing relays PCU-510 12 V

PCU-510-12V, 5908312598152
Timing relays are devised to time the control of industrial and domestic automatic control engineering systems (e.g. ventilation, heating, lighting, signalling, etc.).
Contact 2x1P.

Functioning
Operation mode:
* LAGGED ACTIVATION (IR)
After the power voltage is supplied, the contact remains in position 11-10 (and 8-7 for PCU-510) and the timing of the preset value t is commenced. After the preset time t has been counted down, the contact is shifted to position 11-12 (and 8-9 for PCU-510). The working sequence of the relay may be repeated after turning the power supply off and on.
* LAGGED DEACTIVATION (IA)
 Until the relay is activated, the contact remains in the 11-10 (and 8-7 for PCU-510) position. After the power voltage is supplied, contact is shifted to position 11-12 (and 8-9 for PCU-510) and the countdown of the preset value t is commenced. After the preset time t has been counted down, contact returns to position 11-10 (and 8-7 for PCU-510). The working sequence of the relay may be repeated after turning the power supply off and on.
* LAGGED ACTIVATION - CYCLIC (CR)
The LA operational mode is triggered in equal interruption/work cycles according to the preset time values.
* LAGGED DEACTIVATION - CYCLIC (CA)
The LD operational mode is triggered in equal interruption/work cycles according to the preset time values.





Attention!
* Setting the time range knob regulator in the:
  ON - position with power supply activated results in the permanent closure of the contact in position 11-12 (and 8-9 for PCU-510).
  OFF - position (power supply activated) causes the contact to be permanently closed in the 11-10 (and 8-7 for PCU-510) position.
* With the power supply on, the system does not respond to time range setting modifications.
* The newly set time range is active after the power supply has been turned off and on.
* With the power supply on, it is possible to regulate the preset time freely within the selected time range.





PCU-510-12V
Power supply voltage
12 V AC/DC
Operating mode
delayed OFF, delayed ON, cyclical work
The executive element
relay
Maximum load current
2 × 8 A
Contact configuration
2 × NO/NC
Separation of the contact
YES
Delay of operation
50 ms
Contact status indication
LED red
Operating time - adjustable
0,1 s ÷ 576 godz.
Power indication
LED green
Terminal
pluggable terminal blocks 2,5 mm²
Tightening torque
0,4 Nm
Power consumption
0,8 W
Working temperature
-25 ÷ 50 °C
Dimensions
1 module (18 mm)
Assembly
on rail 35 mm
Ingress Protection Marking
IP20
