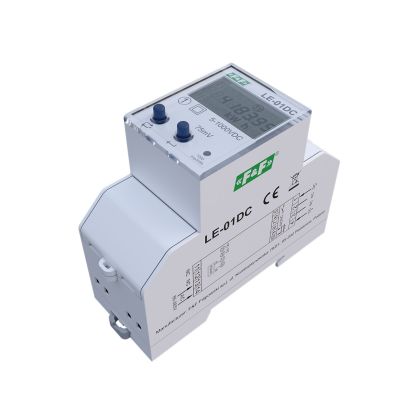

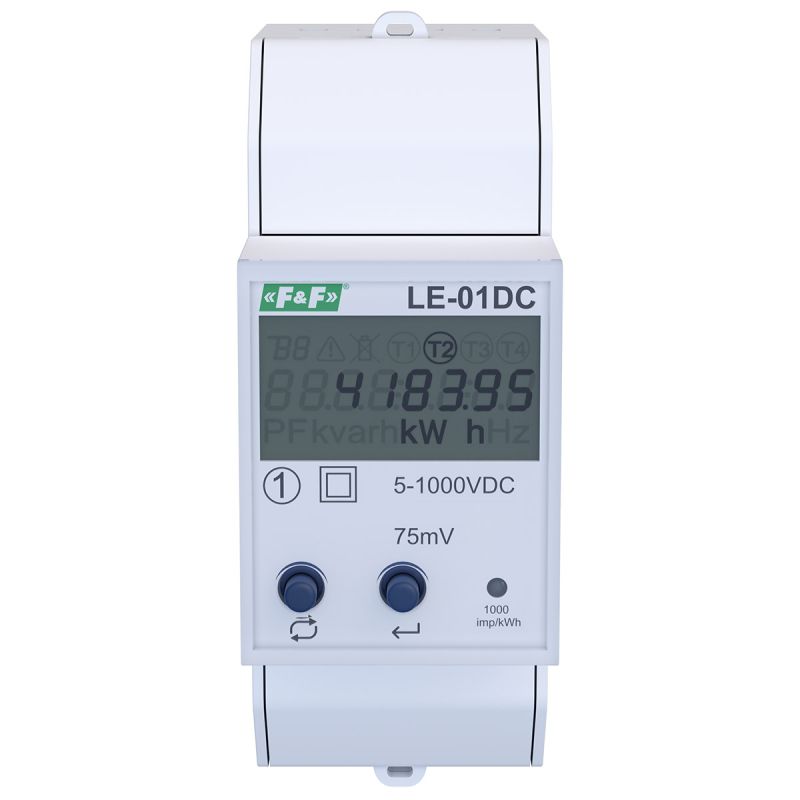

Electric energy meter LE-01DC
LE-01DC is an electronic meter designed to measure electricity consumption in DC circuits.
Description
The meter enables 2-way measurement of energy consumption and monitoring of current power parameters: power, voltage and current. The built-in real-time clock with battery backup enables the measurement of energy consumption divided into four tariff zones set by the user, set in a daily cycle. The meter's memory also stores the state of the energy meter from the last thirty days and the last twelve months. The monthly indicator records both the total energy consumption and the distribution of consumption between individual tariffs. LE-01DC has a built-in relay and a programmable overload threshold. Exceeding the set load for the set time will switch the relay. The meter is also equipped with an RS485 communication interface. RS485 supports the Modbus RTU protocol, provides remote reading and configuration of the device. The buttons on the front of the meter enable the selection of the displayed parameter and change of the meter settings. The backlit LCD display makes it easy to read the measured values.
Functioning
Under the influence of the current flowing through the external measuring shunt and the applied voltage, the meter accurately measures energy consumption and additional electrical parameters (power, voltage, current). The meter records in the non-volatile memory the total energy consumption divided into programmed tariff zones. Other parameters indicated by the meter are temporary and show the current values of the measured parameters, which are not saved to the non-volatile memory.
- Input voltage
- 5V ~ 1000V DC
- Measurement
- Semi-direct - shunt
- Communication interface
- RS-485 (MODBUS RTU)
- Accuracy of measurement
- Pomiar prądu 0.5%, Pomiaru napięcia 0.5%, Pomiaru mocy czynnej 1%
- Counter's own consumption
- ≤8VA , ≤0.4W
- Scope of indication of the abacus
- 0÷999999,99 kWh
- Counter constant
- 1000 imp./kWh
- Compatibility
- PN-EN 62052-11
- Communication protocol
- MODBUS RTU
- Prędkość transmisji
- 9600(*), 19200, 38400, 115200 bps
- Parzystość
- None, Even(*), Odd
- Stop bits
- 1(*) - 2
- Display
- 8-cyfrowy (6+2), LCD podświetlany (kolor niebieski)
- Humidity (non-condensing)
- ≤95%
- ports
- RS-485
- interface
- RS-485
- LCD backlight
- YES
- Terminal
- pluggable terminal blocks 2,5 mm²
- Dimensions
- 2 moduły DIN ( 150 x 38 x 80.5 )
- Assembly
- on rail 35 mm
- Ingress Protection Marking
- IP20
- Zasilanie pomocnicze
- 85V ~ 300V AC
- Wytrzymywane napięcie AC
- 4400V/min
- Wytrzymywane napięcie udarowe
- 6.4kV - 1.2/50μS
- Bocznik pomiarowy - Prąd strony pierwotnej
- ≤ 2000A
- Bocznik pomiarowy - Napięcie strony wtórnej
- 75 mV
- Measuring system
- DC
single-phase - Communication
- Modbus
- 2-way energy measurement
- TAK
| Produkt | Licznik 1-fazowy |
Licznik 3-fazowy |
Wskaźnik 1-fazowy |
Wskaźnik 3-fazowy |
MID | Pomiar pośredni |
Pomiar półpośredni |
2-kierunkowy | Pomiar dodatkowych parametrów | Komunikacja | Podświetlenie liczydła |
Kasowanie | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Energia czynna pobrana | Energia czynna oddana | Energia bierna | Energia bierna pobrana | Energia bierna oddana | Moc czynna, bierna, pozorna | Zapotrzebowanie na moc | Napięcie | Prąd | Częstotliwość | Współczynnik mocy | Ethernet | Modbus | M-Bus | |||||||||||
| LE-01 | ● | – | – | – | – | – | – | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| LE-01d | ● | – | – | – | ● | – | – | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | ● | – |
| LE-01DC | ● | – | – | – | – | – | bocznik | ● | ● | ● | – | – | – | – | ● | ● | ● | – | – | – | ● | – | ● | – |
| LE-01M | ● | – | – | – | – | – | – | – | ● | – | – | – | – | – | – | – | – | – | – | – | ● | – | – | – |
| LE-01MB | ● | – | – | – | ● | – | – | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | – | – | ● | ● | – |
| LE-01MQ | ● | – | – | – | ● | – | – | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | – | ● | – | ● | – |
| LE-01MR | ● | – | – | – | ● | – | – | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | – | ● | – | ● | ● |
| LE-01MW | ● | – | – | – | ● | – | – | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | – | ● | – | ● | ● |
| LE-01R | ● | – | – | – | ● | – | – | ● | ● | ● | ● | – | – | ● | ● | ● | ● | ● | ● | – | – | – | ● | ● |
| LE-02d | – | ● | – | – | ● | – | – | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | ● | – |
| LE-02d CT | – | ● | – | – | – | – | ● | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | ● | – |
| LE-03 | – | ● | – | – | – | – | – | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| LE-03d | – | ● | – | – | ● | – | – | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | ● | – |
| LE-03d CT200 | – | ● | – | – | – | – | ● | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| LE-03d CT400 | – | ● | – | – | – | – | ● | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| LE-03ETH | – | ● | – | – | ● | – | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | – | – | ● | – |
| LE-03ETH-CT | – | ● | – | – | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | – | – | ● | – |
| LE-03 FPV-RST | – | ● | – | – | ● | – | – | ● | ● | ● | – | – | – | ● | – | – | – | – | – | – | – | – | ● | ● |
| LE-03M | – | ● | – | – | ● | – | – | – | ● | – | – | – | – | – | ● | ● | ● | – | – | – | ● | – | – | – |
| LE-03M CT | – | ● | – | – | – | – | ● | – | ● | – | – | – | – | – | – | – | – | – | – | – | ● | – | – | – |
| LE-03MB | – | ● | – | – | ● | – | – | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | – | – | ● | ● | – |
| LE-03MB CT | – | ● | – | – | – | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | – | – | ● | ● | – |
| LE-03MP | – | ● | – | – | – | – | – | – | ● | – | ● | – | – | ● | – | ● | ● | ● | – | – | ● | – | – | – |
| LE-03MQ | – | ● | – | – | ● | – | – | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | – | ● | – | ● | – |
| LE-03MQ CT | – | ● | – | – | – | – | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | – | ● | – | ● | – |
| LE-03MW | – | ● | – | – | ● | – | – | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | – | ● | – | – | ● |
| LE-03MW CT | – | ● | – | – | – | – | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | – | ● | – | – | ● |
| LE-04d | – | ● | – | – | – | – | – | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| LE-05d | – | ● | – | – | – | – | – | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| NEL-1-30 | – | – | ● | – | – | – | – | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| NEL-1-60 | – | – | ● | – | – | – | – | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| NEL-3-100 | – | – | – | ● | – | – | – | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | – | ● |
| WZE-1 | ● | – | – | – | ● | – | – | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| WZE-1-RST | ● | – | – | – | – | – | – | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | – | ● |
| WZE-3 | – | ● | – | – | ● | – | – | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| WZE-3-RST | – | ● | – | – | ● | – | – | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | – | ● |
