Electricity consumption meter LE-01MP

LE-01MP, 5908312597209
THE PRODUCT IS WITHDRAWAL FROM SALE. REPLACEMENT: LE-01MR

With network parameters analysis. Remote reading. Single-phase. RS-485 port + Modbus RTU.

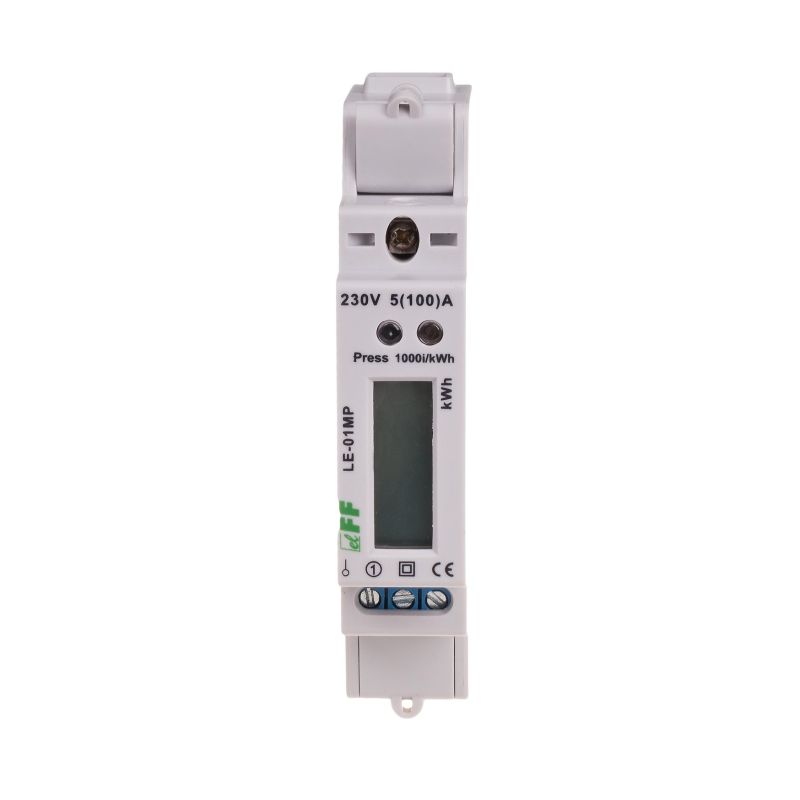

LE-01MP is a static (electronic) calibrated electricity meter of single-phase alternating current in a direct system. It is used for reading and recording of consumed  electric energy and mains parameters with remote readout via a wired RS-485 network.




Measured values
Active power  - AE+ [kWh]
Phase voltage  - U [V]
Phase current  -  I [A]
Frequency  -  F [Hz]
Meter system temperature - T [°C]


Functioning
Under the influence of flowing current and applied voltage, the LE meter accurately measures the amount of consumed electricity. Energy consumption is indicated by flashing LED (1000 pulses/kWh). In addition, the device  measures the mains parameters and the temperature of its own system. The values ​​are displayed cyclically on LCD display. Parameter changes every 3 seconds. Indicated values: active power (0.1 kWh); voltage (0.1V); current intensity (0.1A).
The display is active if the meter power supply is on. If the power supply is off, user can  preview the energy usage [kWh] for 30 seconds by pressing the PRESS key.








Attention!
The meter has sealable input and output terminal covers to prevent  any attempts to bypass the meter.
The meter is marked with individual serial number allowing its unambiguous identification. The marking is laser engraved and cannot be removed.

Service program

LE Config
The program allows to test reading of the calculated energy and make the settings of the basic parameters of the counter.


PC-LE communication via USB converter    WE-1800-BT►
Free program.



Programs for remote reading of electricity meters
LE-01M, LE-01MP, LE-01MR, LE-03M, LE-03MP, LE-03M CT



MeternetPRO
The MeternetPRO application allows remote reading of states and indications of counters, multimeters, measuring transducers, expansion modules of input/output and other measuring devices communicating through Modbus RTU protocol. The exchange of data between devices and the application is executed through RS-485 or local area network (LAN). The application, along with the database is installed on a special MT-CPU-1 server, which operates in a local network. Software user interface is a web application (web site). Access to the application is executed through any web browser. In a LAN with a public IP address, you can configure the application and read the data over the Internet.





Subscription billing of electricity consumption module
Module of the subscription billing of the power consumption or other recorded incremental value, for example: water, heat, etc. It allows you to calculate the increases in the value in the designated billing periods (intervals). Cycles: monthly, weekly, daily, hourly. The module allows you to create multiple individual and parallel reports.






LE-01MP
Type
single-phase
ports
RS-485
Communication protocol
MODBUS RTU
Reference voltage
230 V AC
Current current
5:00 AM
Maximum current
100 A
The minimum measured current
0,02 A
Accuracy of measurement in accordance with IEC61036
class 1
Counter's own consumption
8 VA; 0,4 W
Scope of indication of the abacus
0÷99999,99 kWh
Counter constant
(1 Wh/imp) 1000 imp/kWh
Reading signaling
LED red
Terminal
pluggable terminal blocks 25 mm²
Working temperature
-20÷65°C
Dimensions
1 module (18 mm)
Assembly
on rail 35 mm
Ingress Protection Marking
IP20
