Multifunctional network parameter indicator DMM-5T-2

Application

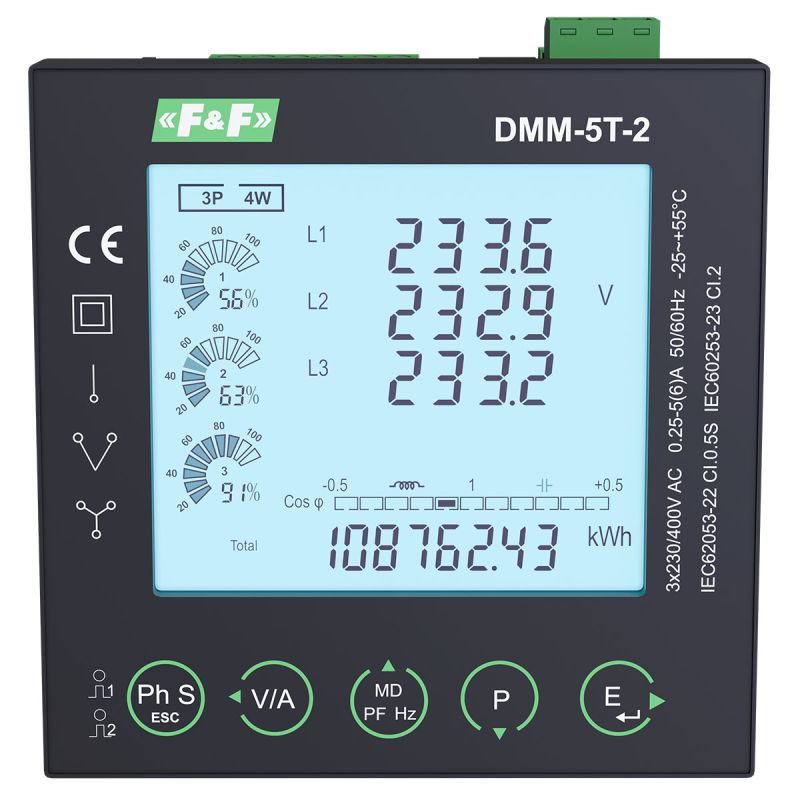

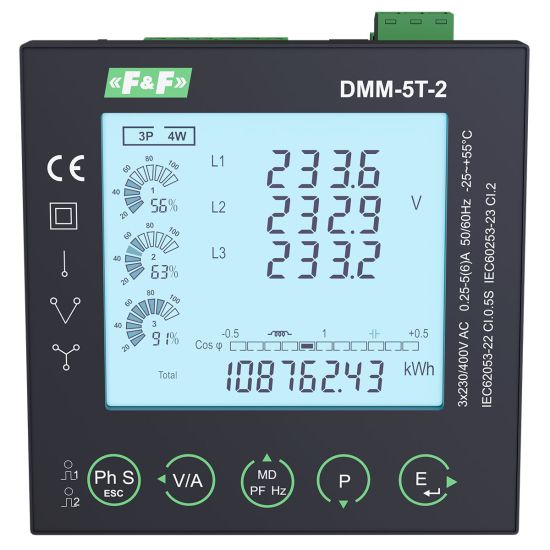

DMM-5T-2 is a multifunctional, universal panel indicator 96x96 mm. It precisely monitors all important parameters of the electrical network - including analysis of the direction of energy flow and the distribution of voltage and current harmonics. It works in direct, semi-indirect and indirect measurement systems. It is equipped with a Modbus RTU communication interface, which enables remote reading of measured values.

Product characteristics

• Measured parameters:
  • phase voltages and currents,
  • interphase tensions,
  • frequency,
  • phase sequence,
• active, reactive, apparent power,
• power and current demand,
• power factor,
• full, four-quadrant energy measurement (both consumed and fed into the network)
• analysis of the distribution of voltage and current harmonics up to and including the 63rd harmonic.
• Measurement accuracy:
  • active energy – class 0.5S,
  • voltage, current, frequency – 0.2%,
  • active power – 0.5%,
  • reactive and apparent power – 1%,
  • passive energy – 2%.
• Configuration of the measured network:
  • 3-phase, 4-wire,
  • 3-phase, 3-wire,
  • 1-phase, 2-wire.
• Measuring system:
  • directly (up to 5 A),
  • semi-direct using current transformers,
  • indirect using voltage and current transformers.
• Communication:
  • RS485 interface and Modbus RTU protocol support,
  • two pulse outputs.
• LCD display:
  • backlit multi-function LCD display,
  • power factor indicator,
  • bargraph for clear display of the load level.
• Case Size:
  • 96 x 96 x 62 mm.
