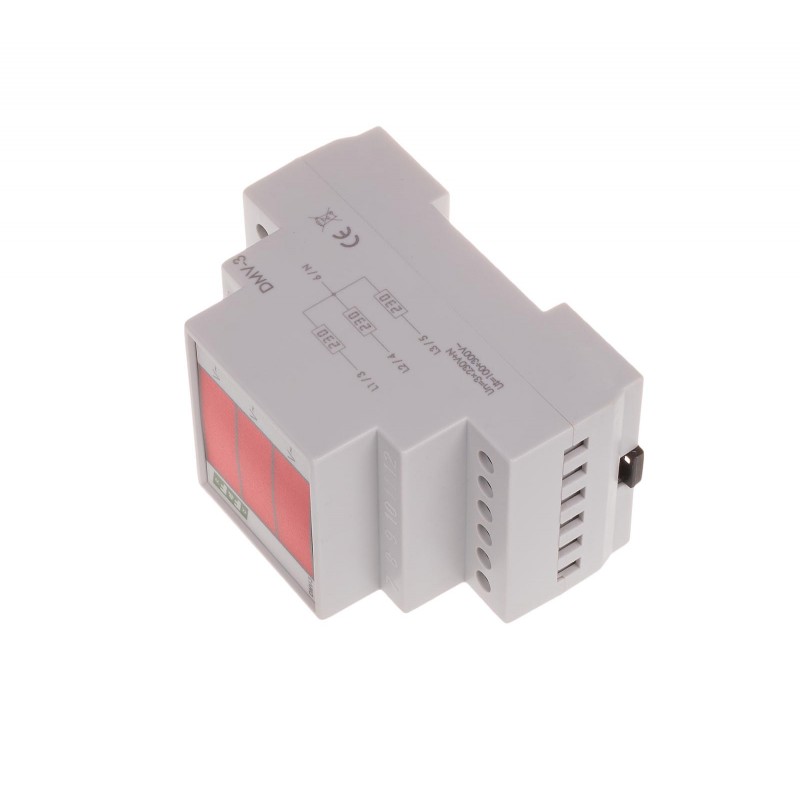

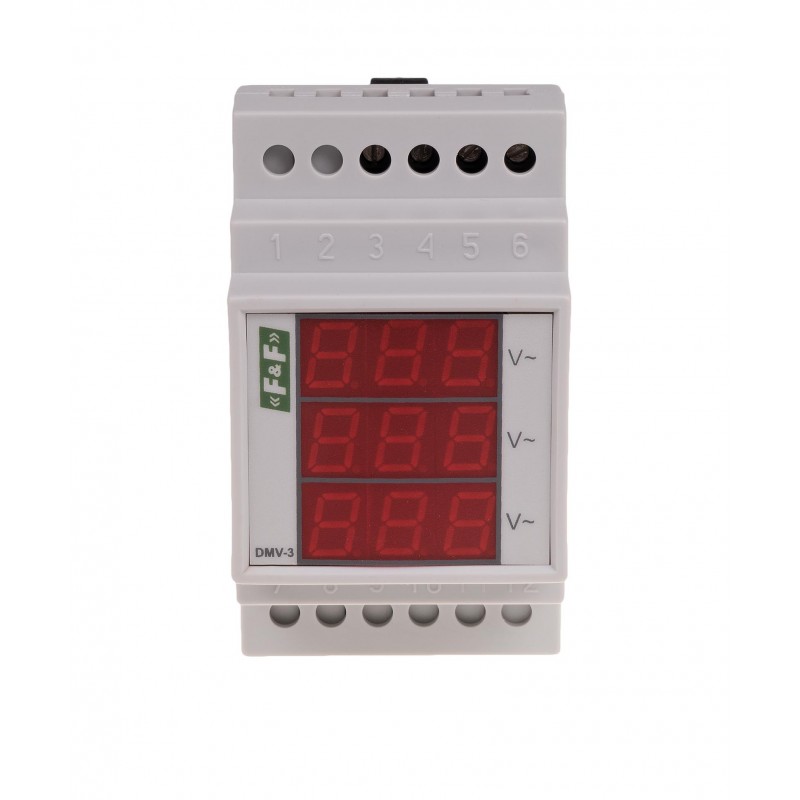

Voltage indicator DMV-3
Digital. Three phases indicator.
Voltage indicator DMV-3 is used for continuous reading of three-phase voltage network.
Voltage indicator DMV-3 is used for continuous reading of three-phase voltage network.
Functioning
* Measure the phase voltages.
* Measuring the circumference is also a circuit device.
* Index marked TrueRMS fitted with a transducer gives the correct value of the effective value of voltage at deformed runs.
* Measuring the circumference is also a circuit device.
* Index marked TrueRMS fitted with a transducer gives the correct value of the effective value of voltage at deformed runs.
- Type
- three-phase voltmeter
- Power supply voltage
- 100÷265 V AC
- Display
- for each phase 3-digit LED (height digit 10 mm)
- Range of indications
- 100÷265 V AC
- Power frequency
- 45÷55 Hz
- Accuracy of indications
- 1%
- Terminal
- pluggable terminal blocks 4,0 mm²
- Tightening torque
- 0,5 Nm
- Power consumption
- 4 W
- Working temperature
- -25 ÷ 50 °C
- Dimensions
- 3 modules (52,5 mm)
- Assembly
- on rail 35 mm
- Ingress Protection Marking
- IP20
