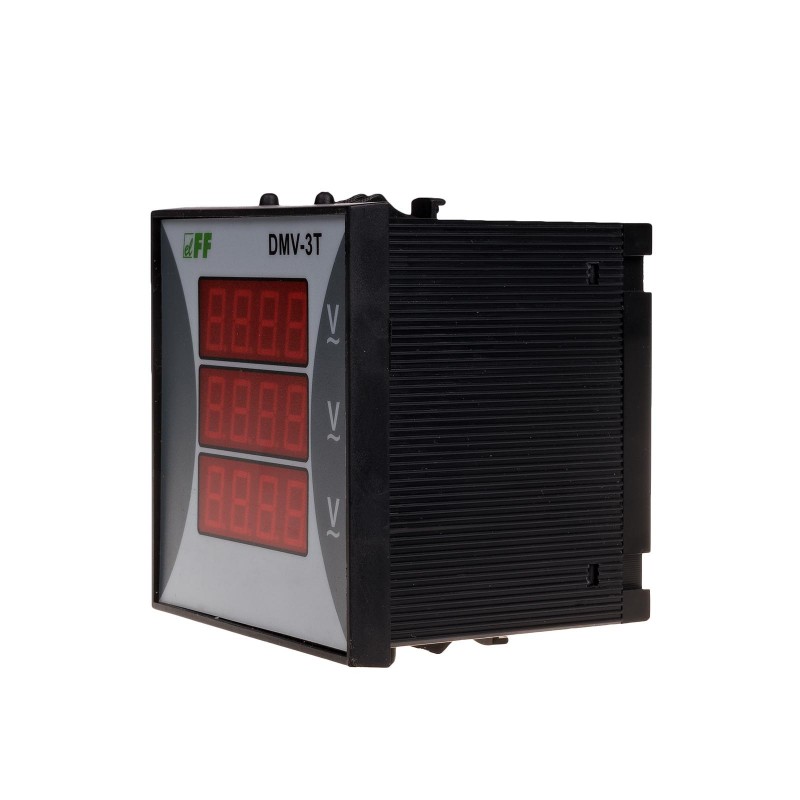

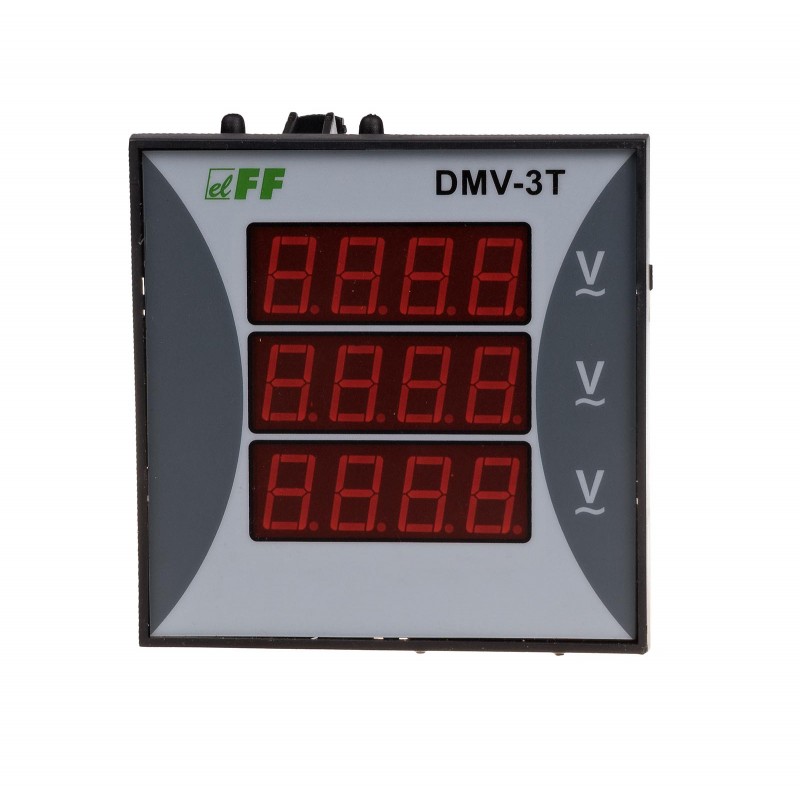

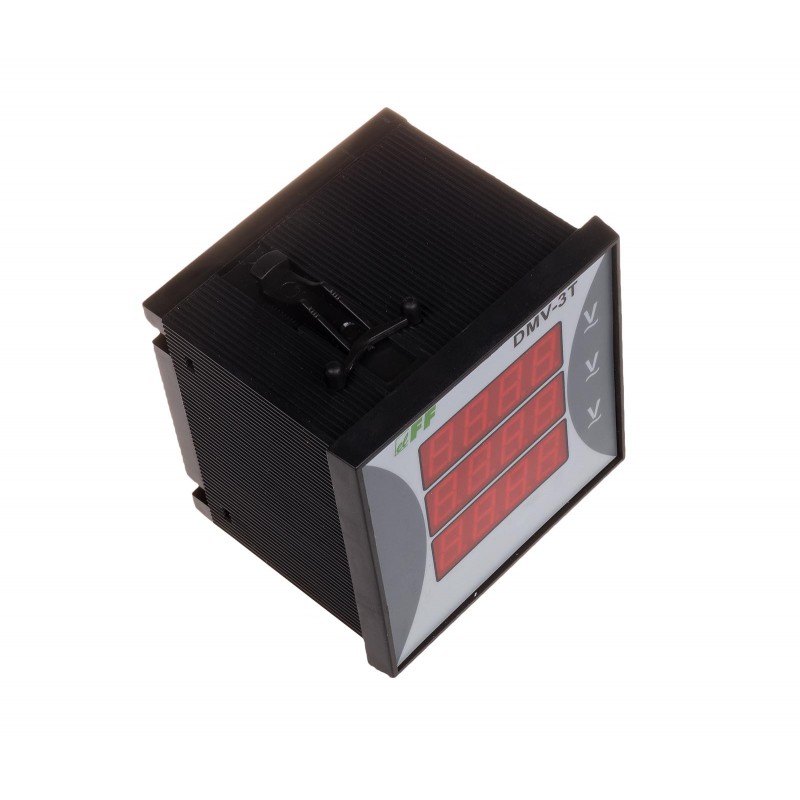

Voltage indicator DMV-3T
Digital. Three phases indicator.
Index DMV-3T voltage is used to continuously read the value of three-phase voltage network.
Index DMV-3T voltage is used to continuously read the value of three-phase voltage network.
Functioning
* Measure the phase voltages.
* Circumference measurement is separated from the circuit device.
- Type
- three-phase voltmeter
- Power supply voltage
- 230 V AC
- Display
- for each phase 4-digit LED (height 14 mm digits)
- Range of indications
- 3×12÷400 V
- Accuracy of indications
- 1%
- Terminal
- pluggable terminal blocks 1,5 mm²
- Tightening torque
- 0,4 Nm
- Power consumption
- 3 VA
- Working temperature
- -5÷50°C
- Dimensions
- 96 mm × 96 mm × 92 mm
- Mounting hole
- 92 mm × 92 mm
- Assembly
- Front of control cabinet
- Ingress Protection Marking
- IP20
