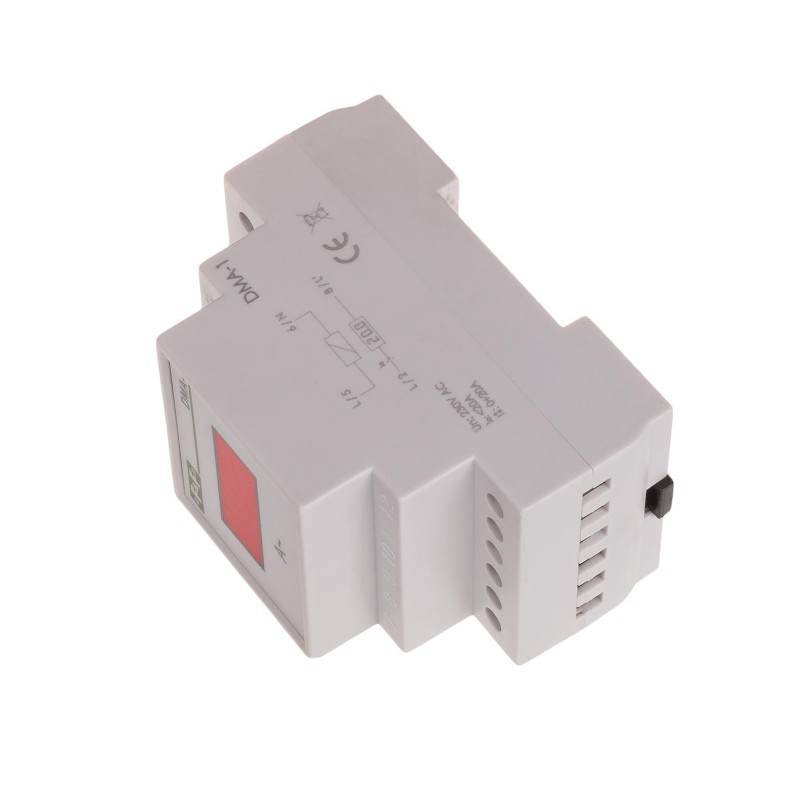

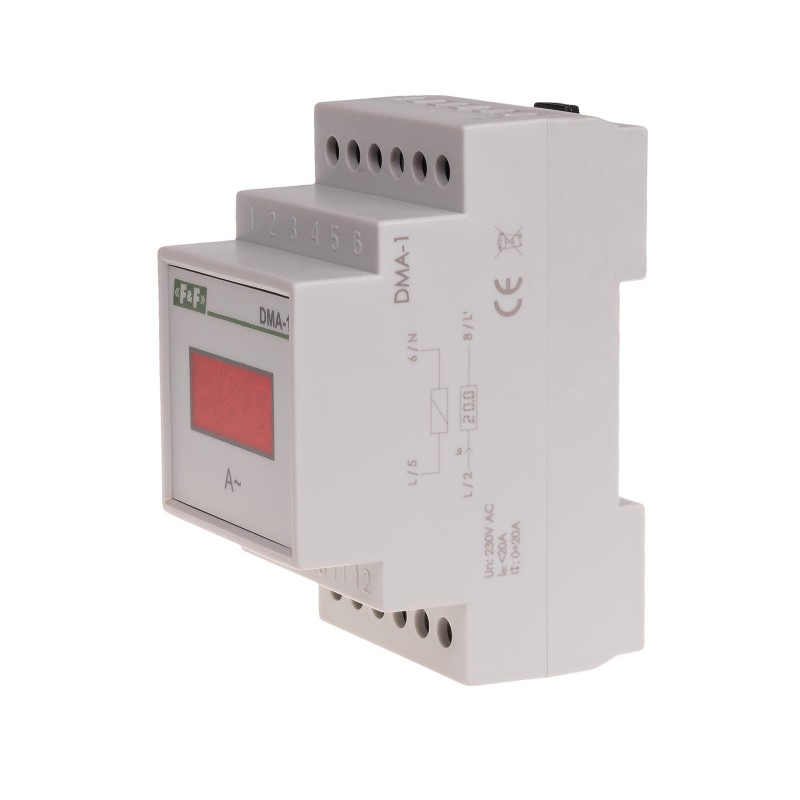

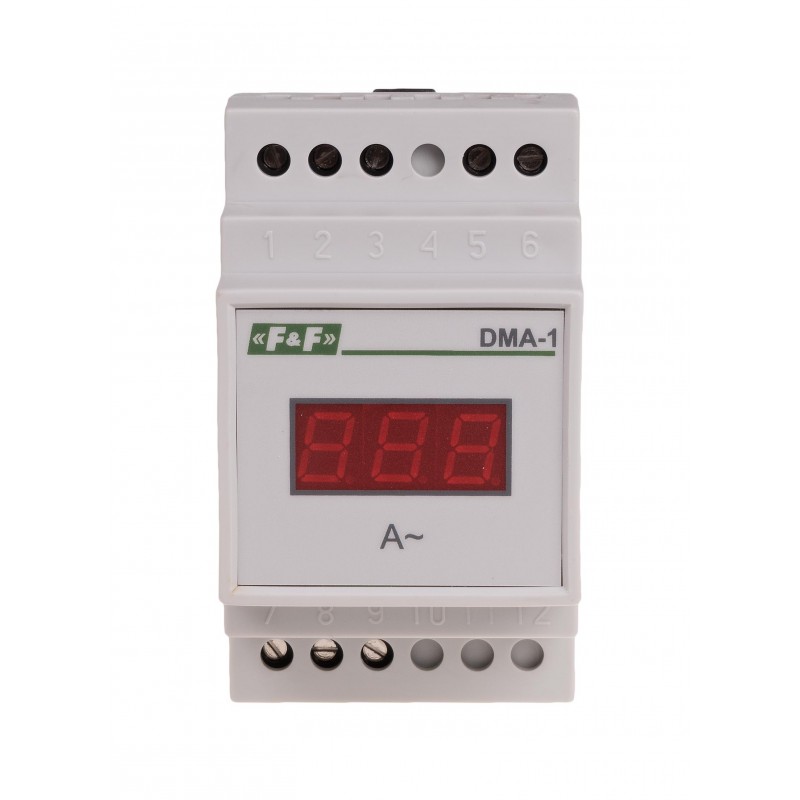

Current intensity indicator DMA-1

DMA-1, 5908312592006
Digital. One phase indicator.
Current intensity indicator DMA-1 is used to continuous measurement the value of the current in a circuits of single-phase.

Functioning
* Measuring the effective value of current in electrical circuit.
* Measuring the circumference of the circuit is separated from the power indicator.
* Index marked TrueRMS fitted with a transducer gives the correct value of the effective value of current intensity at deformed runs.



Implementation
DMA indicators are intended for current transformers with a rated secondary current of 5A. The current range for these transformers is from 25 to 1000/5 A. The primary value of the transformer's current specifies the maximum measured current and the actual current value displayed by the indicator.
The DMA-20A and DMA-3 20A are intended for direct measurements (without transformers applied) within the range of 0÷20 A.


Order labeling method:

INDIRECT MEASUREMENT (with transformers applied)

DMA- X  Y /5A Z

X
One phase: 1





Y
Primary value of the transformer's current :

25, 30, 40, 50, 70, 75, 80, 100, 120,
125, 150, 160, 200, 250, 300, 400,
500, 600, 700, 750, 800, 900, 1000.

 Z
True RMS













Example:
* DMA-150/5A  a one-phase device for 50/5A transformer, measurement range at 0÷50A, no TrueRMS;


DIRECT MEASUREMENT (without transformers)


X
One phase: 1
 		 Z
True RMS






Example
  * DMA-1 20A - one-phase device for  20A, measurement range 0÷20A, without TrueRMS
  * DMA-1 20A TrueRMS - one-phase device for 20A, measurement range  3×0÷20A, with TrueRMS

DMA-1
Type
single-phase ammeter
Power supply voltage
100÷265 V AC
Display
3-digit LED (height digits 10 mm)
Power frequency
45÷55 Hz
Display range - direct measurement version
0 ÷ 20 A
Range of indications - intermediate measurement version
0 ÷primary current of the transformer
Accuracy of indications
1%
Maximum instantaneous overload
40 A (maximum to 1s)
Maximum current - direct measurement version
20 A
Maximum current - intermediate measurement version
5:00 AM
Terminal
pluggable terminal blocks 4,0 mm²
Tightening torque
0,5 Nm
Power consumption
4 W
Working temperature
-25 ÷ 50 °C
Dimensions
3 modules (52,5 mm)
Assembly
on rail 35 mm
Ingress Protection Marking
IP20
