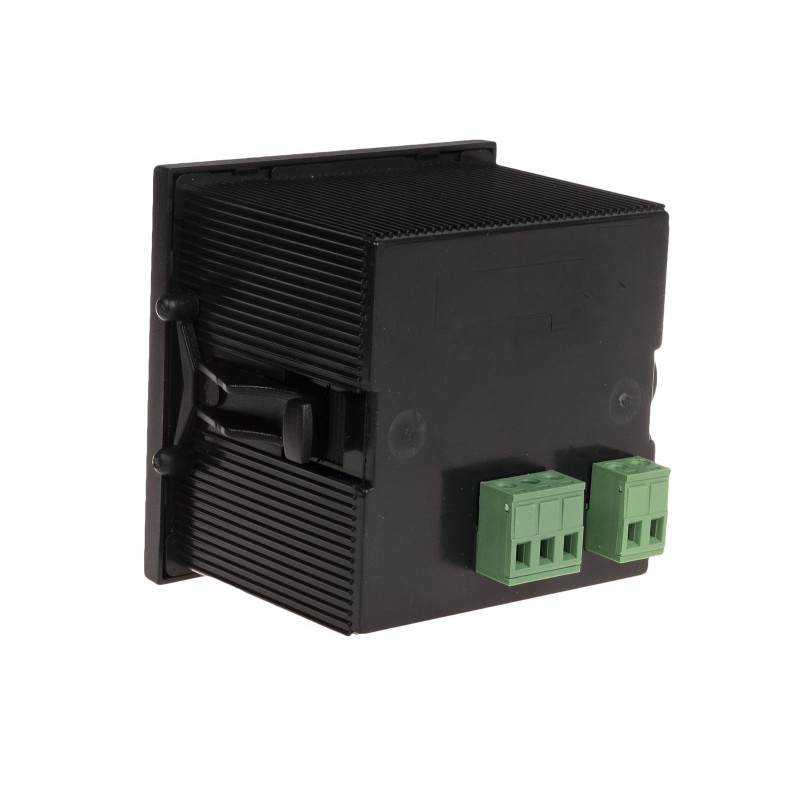

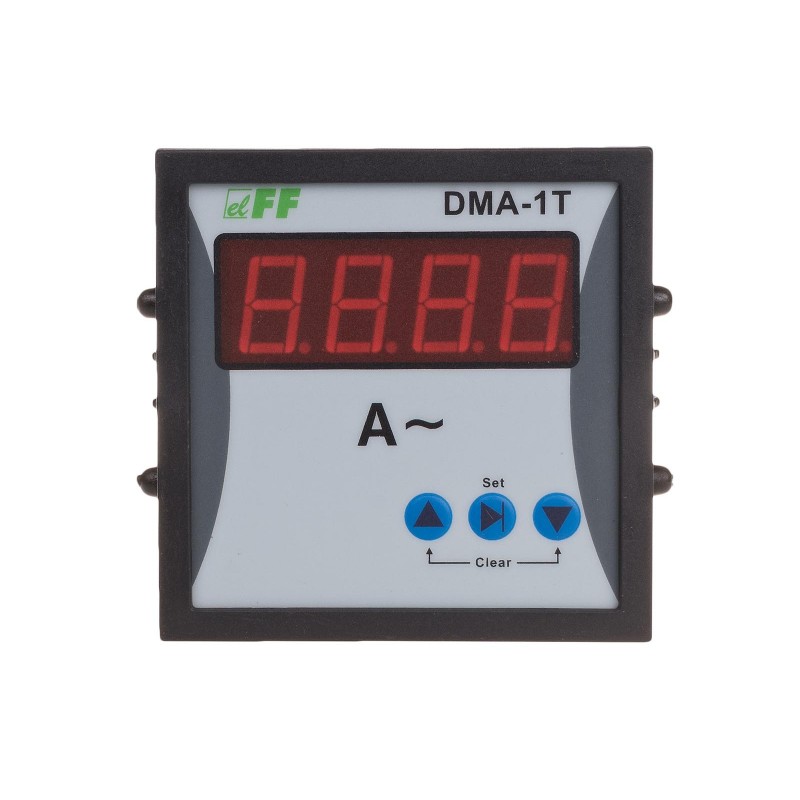

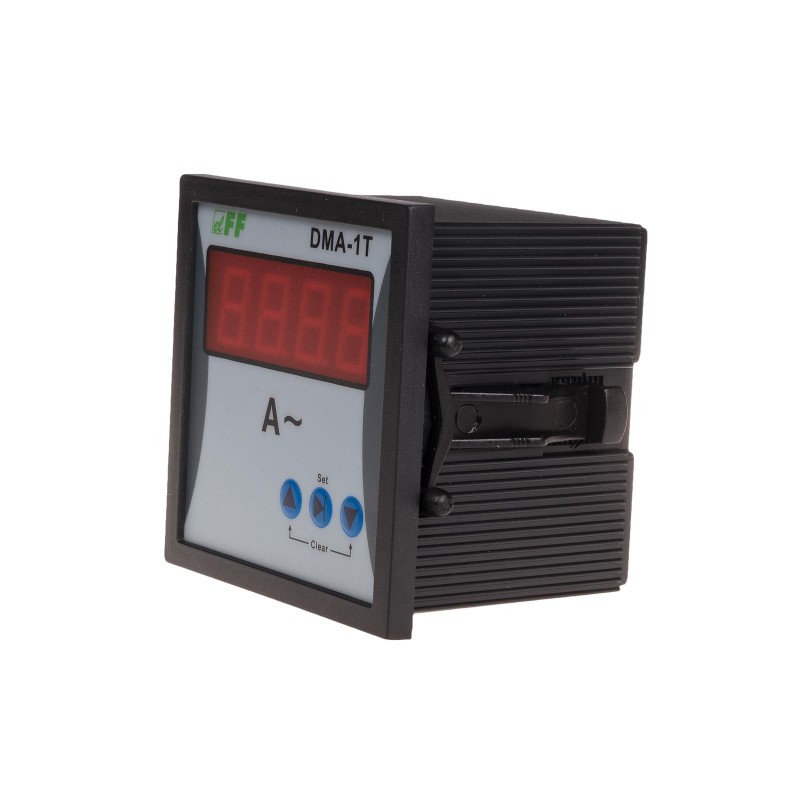

Current intensity indicator DMA-1T

DMA-1T, 5908312591795
Digital. One phase indicator.
Current intensity indicator DMA-1T is used to continuous measurement the value of the current in a circuits of single-phase.

Functioning
* direct measurement 0÷5A
* indirect measurement using current transformers
* setting indicator to proper current transformer values using three buttons on the indicator's front
* indirect measurement using current transformers in standard current work with 1÷9000/5A range.






DMA-1T
Type
single-phase ammeter
Power supply voltage
230 V AC
Display
4-digit LED (height figures 14 mm)
Display range - direct measurement version
0 ÷ 5 A
Range of indications - intermediate measurement version
0 ÷primary current of the transformer
Accuracy of indications
1%
Maximum current - direct measurement version
5:00 AM
Maximum current - intermediate measurement version
depends on the transformer used
Possible type of transformer to connect
1÷9000/5 A
Terminal
pluggable terminal blocks 1,5 mm²
Tightening torque
0,4 Nm
Power consumption
3 VA
Working temperature
-5÷50°C
Dimensions
72 mm x 72 mm x 92 mm
Mounting hole
66 mm × 66 mm
Assembly
Front of control cabinet
Ingress Protection Marking
IP20
