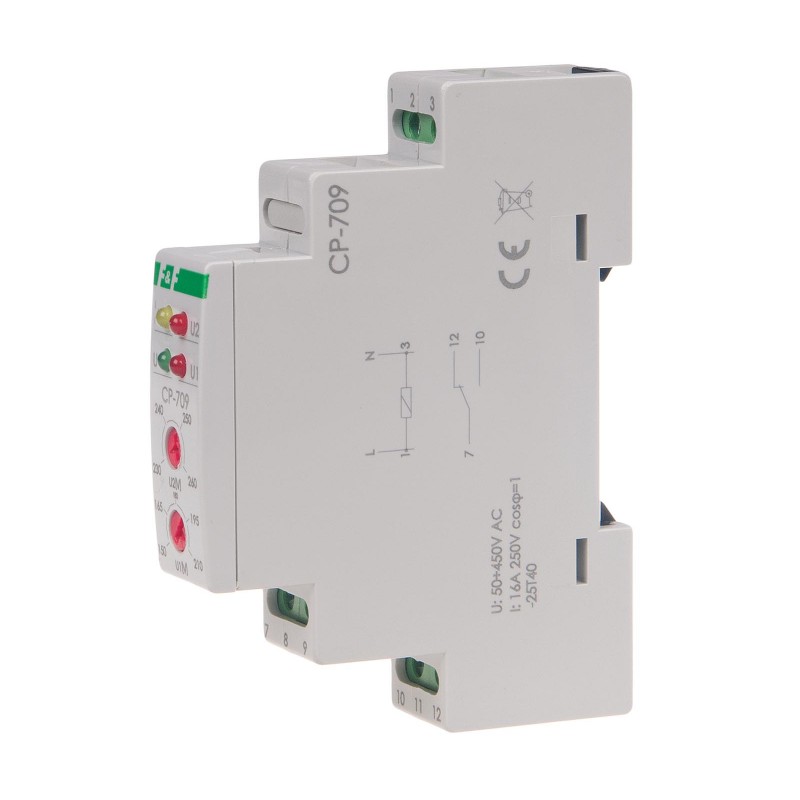

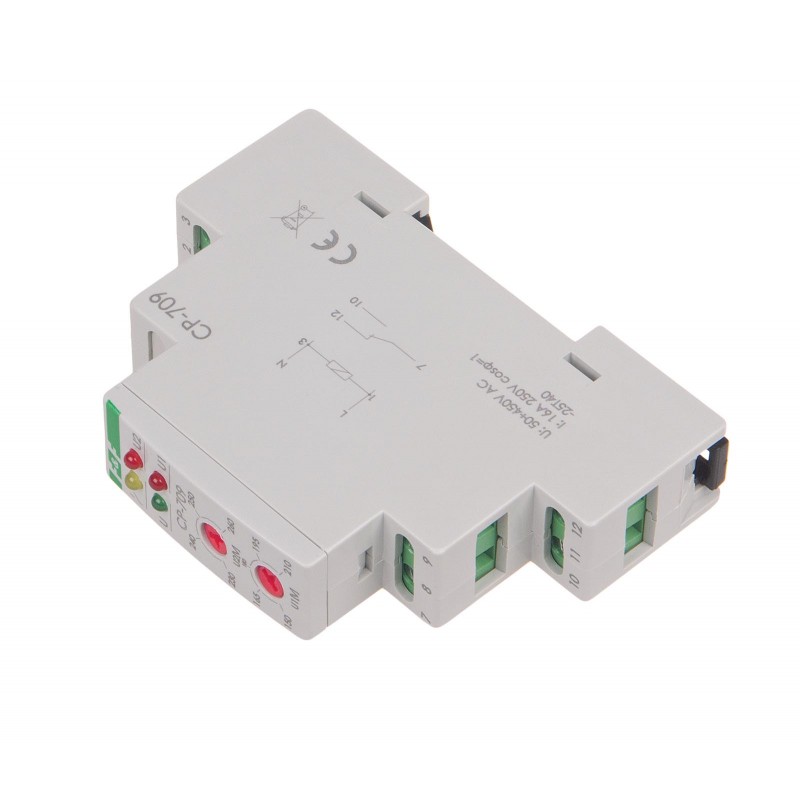

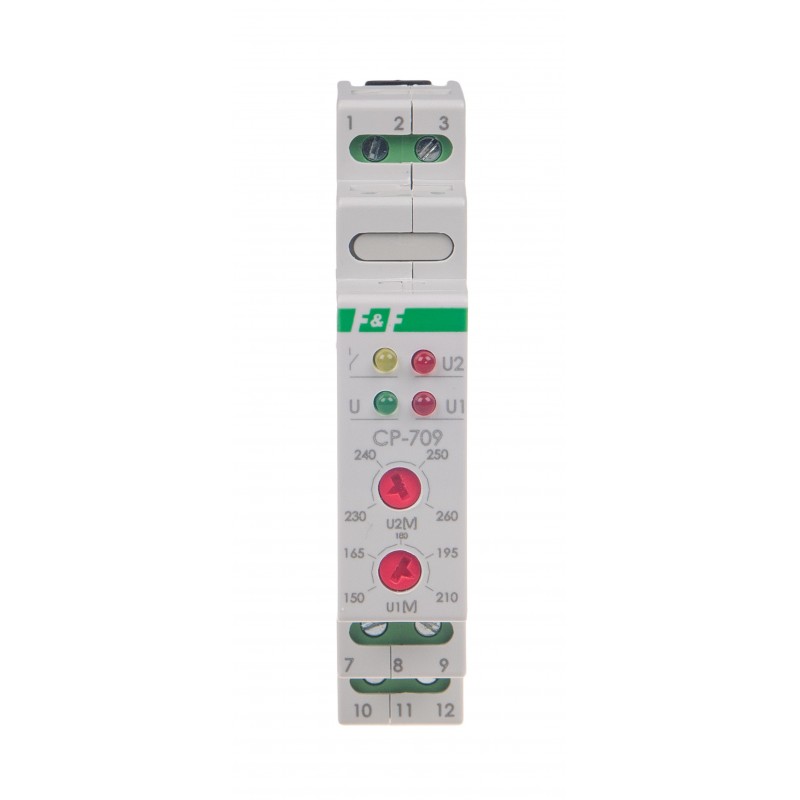

Voltage relays CP-709
Without time-blockade.
Voltage relays serves to voltage control in single or three phase mains and to protect receiver against the effects of voltage collapse or increase beyond set values.
Voltage relays serves to voltage control in single or three phase mains and to protect receiver against the effects of voltage collapse or increase beyond set values.
Functioning
Lower voltage value (U1) and upper voltage value (U2) are set by means of potentiometers. It is so-called eye of voltage, in limits of which can occur changes of phases voltages that do not cause activation of relay. Change of phase voltage on one of phases above or below set voltage tresholds will cause activation of relay. Reactivation follows automatically return of correct voltagevalue.
All types of CP can be supplied with a voltage up to 450V~. This ensures the effective protection of the receiver even in case of a voltage increase beyond allowable standards. Also, in case of supply polarity exchange or when "zero" is switched off (for three-phase types) the relay will not be destroyed ("burned").
- Type
- single-phase
- Power supply voltage
- 50÷450 V AC
- Time lock
- NO
- Cooperation with power generators
- YES
- The executive element
- relay
- Maximum load current
- 16 A
- Contact configuration
- 1 × NO/NC
- Separation of the contact
- YES
- Power control
- 4 × LED
- Trip voltage threshold - lower U1
- 150÷210 V
- Trip voltage threshold - upper U2
- 230÷260 V
- Return voltage hysteresis - for threshold U1
- 5 V
- Return voltage hysteresis - for threshold U2
- 5 V
- Operating time - for U1 threshold
- 1,5 s
- Operating time - for U2 threshold
- 0,1 s
- Return time - for threshold U1
- 1,5 s
- Return time - for U2 threshold
- 1,5 s
- Terminal
- pluggable terminal blocks 2,5 mm²
- Tightening torque
- 0,4 Nm
- Power consumption
- 0,8 W
- Working temperature
- -25 ÷ 50 °C
- Dimensions
- 1 module (18 mm)
- Assembly
- on rail 35 mm
- Ingress Protection Marking
- IP20
